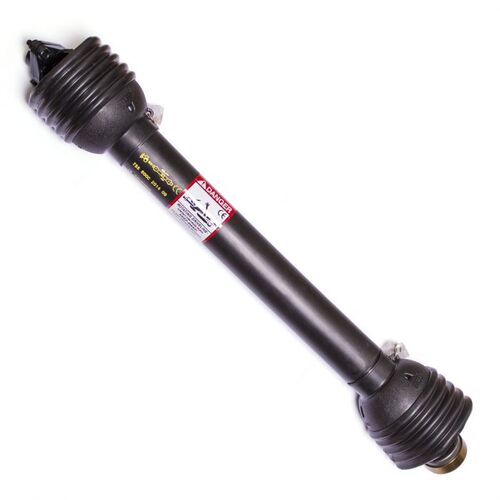

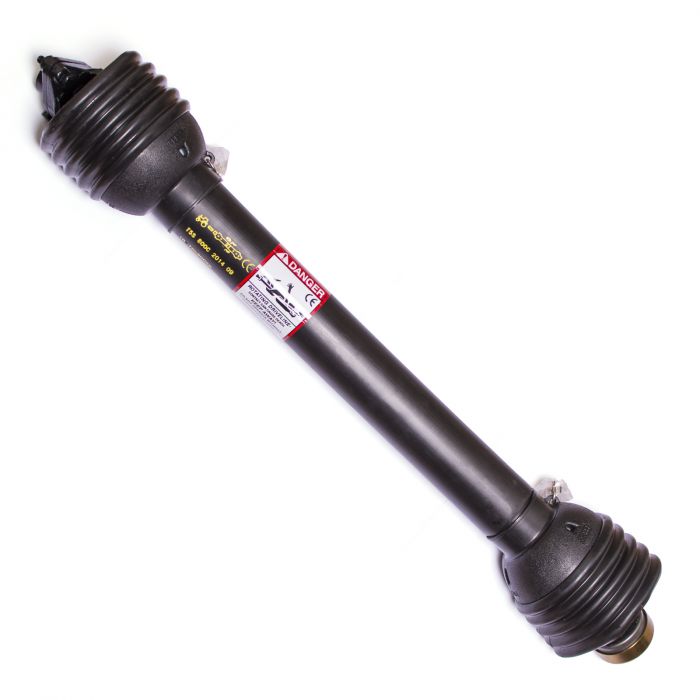

PTO shaft 47 hp L=1,100 mm (joint-joint) shear bolt
PTO shaft used when the shaft's rotation can be blocked.
Read more
£158
Excl. VAT
Assembly cost is additional. Find your dealer in the link at the top of the page, click on ”FIND YOUR DEALER”
Product no. 10-T061100SB
PTO shaft 47 hp L=1,100 mm (joint-joint) shear bolt

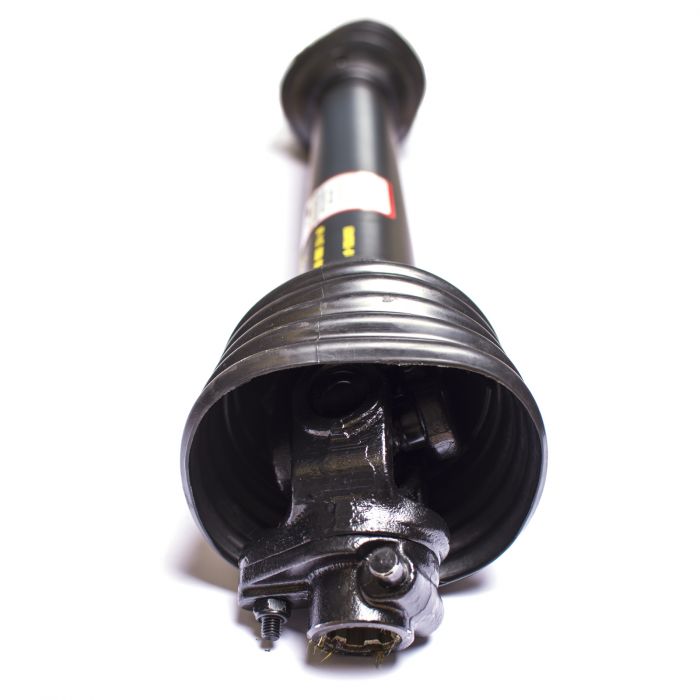

PTO shaft to be used when the rotation of the shaft is subject to blockage. In the event of overloading, the bolt in the coupling is sheared. Resetting is done by replacing the bolt.
The values given apply to 5° deflection angle on the joint.
Technical Specification PTO shaft 47 hp L=1,100 mm (joint-joint) shear bolt
Power (540 rpm): 47
Power (1000 rpm): 74
L min (mm): 1,100
L max (mm): 1,430
Profile: Triangel
Tractor connection: 1 3/8" -6
Equipment connection: 1 3/8" -6
Greasing frequency: 8h
Shear bolt dimension: M10*55
