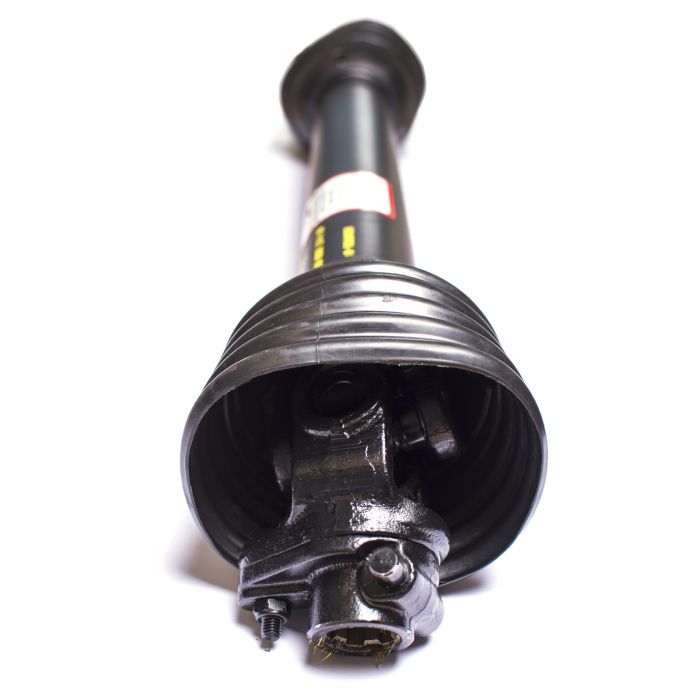

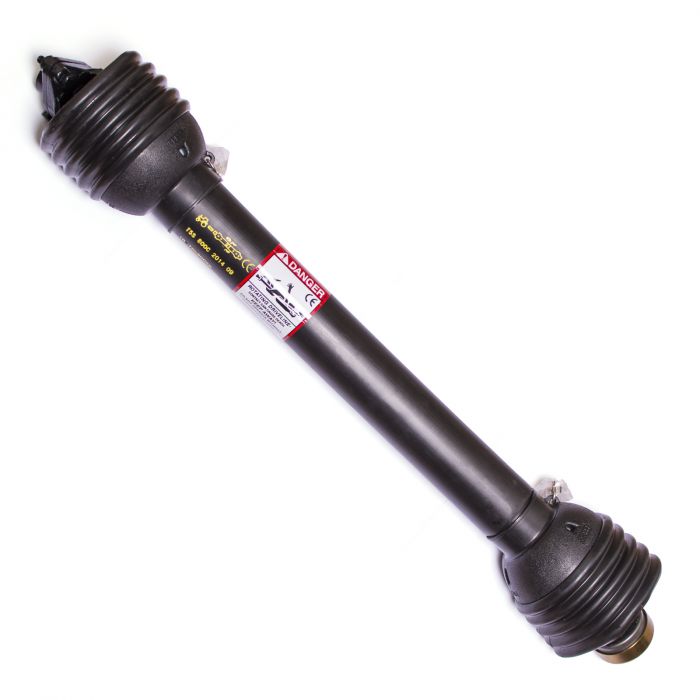

PTO shaft 35 hp L=1,500 mm (joint-joint) shear bolt
PTO shaft used when the shaft's rotation can be blocked.
Read more
£140
Excl. VAT
Assembly cost is additional. Find your dealer in the link at the top of the page, click on ”FIND YOUR DEALER”
Product no. 10-T051500SB
PTO shaft 35 hp L=1,500 mm (joint-joint) shear bolt
PTO shaft to be used when the rotation of the shaft is subject to blockage. In the event of overloading, the bolt in the coupling is sheared. Resetting is done by replacing the bolt.
The values given apply to 5° deflection angle on the joint.
Technical Specification PTO shaft 35 hp L=1,500 mm (joint-joint) shear bolt
Power (540 rpm): 35
Power (1000 rpm): 55
L min (mm): 1,500
L max (mm): 2,039
Profile: Triangel
Tractor connection: 1 3/8" -6
Equipment connection: 1 3/8" -6
Greasing frequency: 8h
Shear bolt dimension: M8*50
