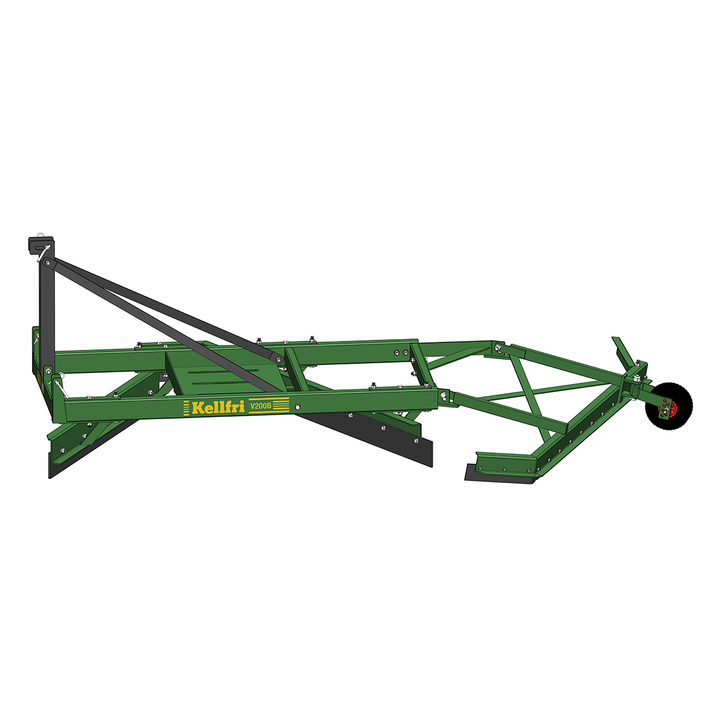

2-blade, 2 m road drag

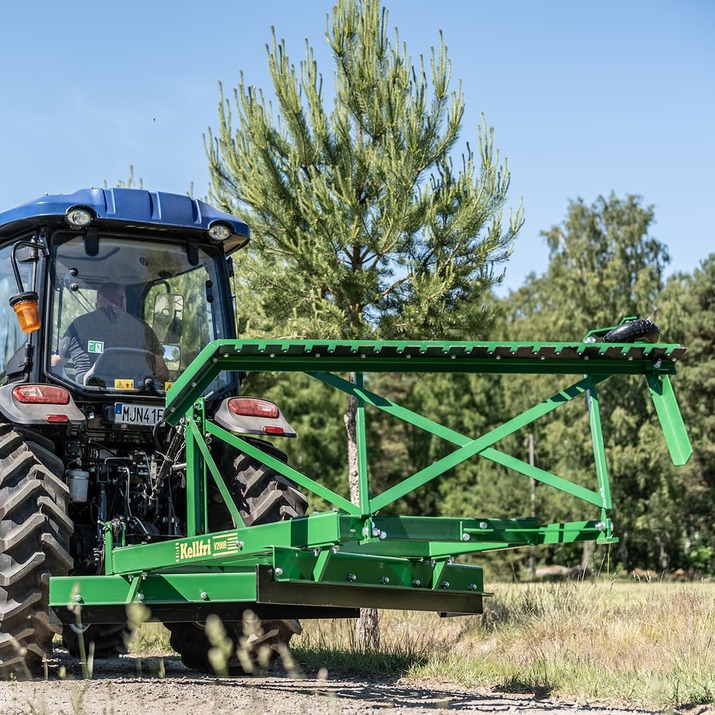

2-blade road drag for simple and stable operation.
2-blade road drag for simple and stable operation
• Working width 200 cm
• Height from frame base to ground 21 cm
• Length, including gravel spreader 375 cm /b>

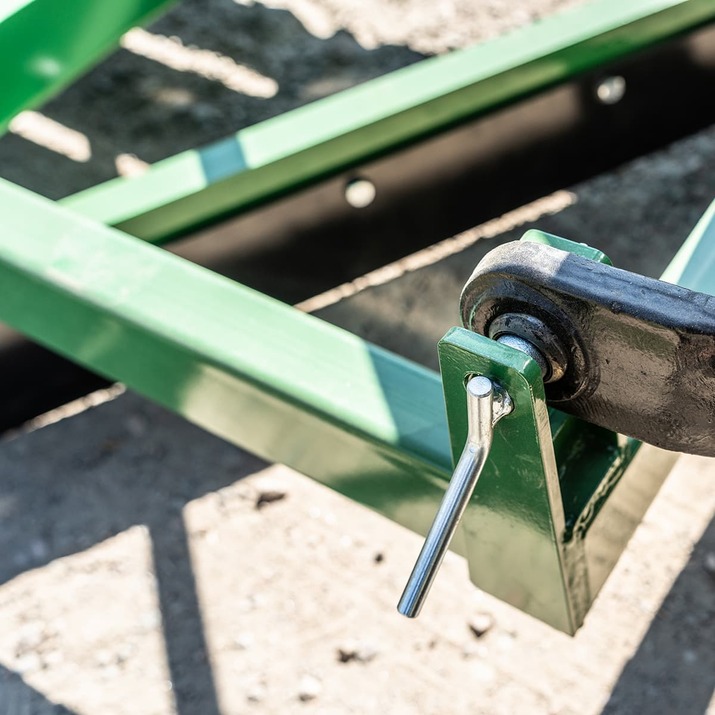

• Three-point linkage cat. 1 and 2
• Wheel has seven adjustable height settings
We are proud to present the new Swedish-designed road drag!
With a bolted design, we have reduced the product's packaging volume, minimising the environmental impact from transportation and warehousing. In addition to the improved packaging, the product’s functionality has also been upgraded. The cutting angles have been adjusted for even better results on gravel roads.

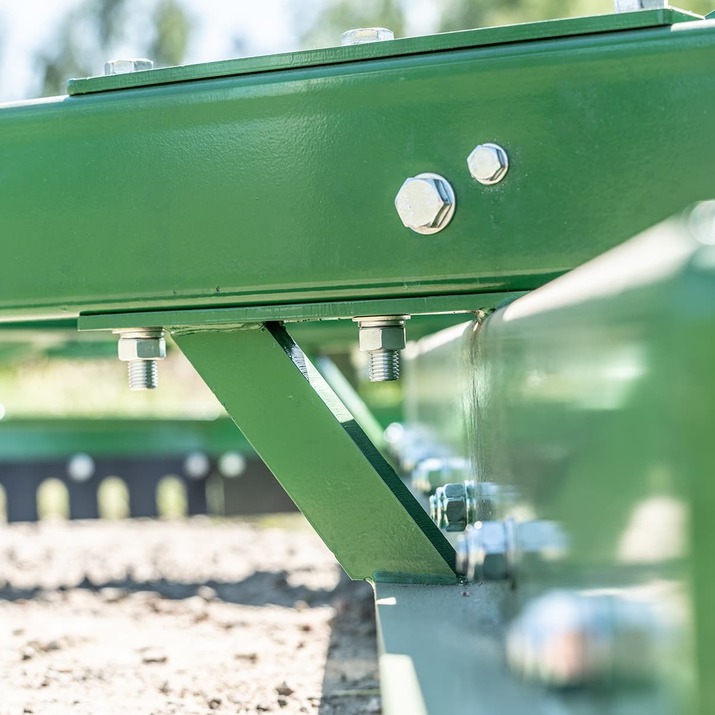

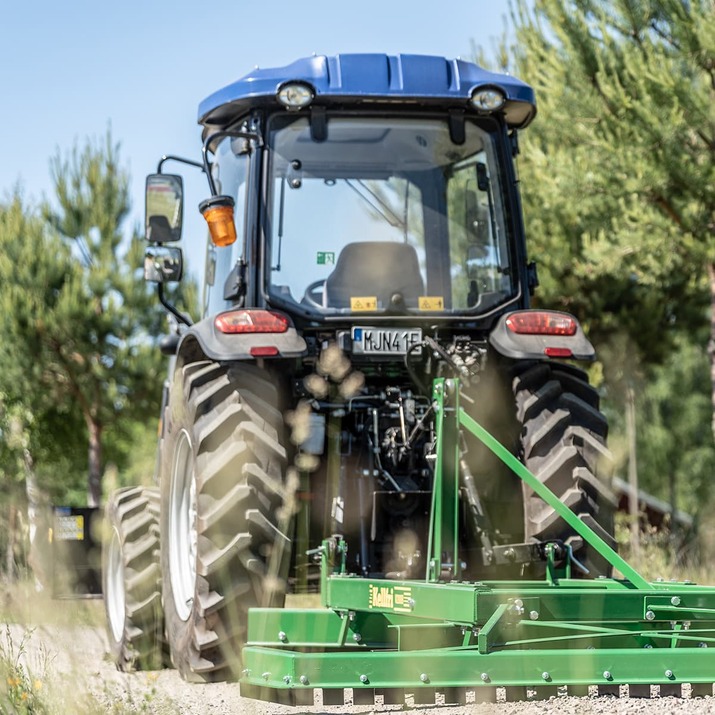

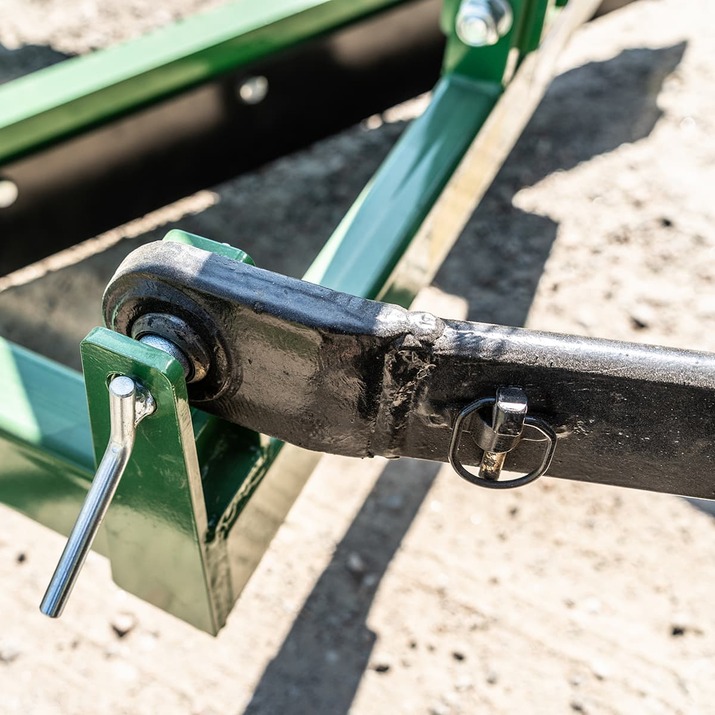

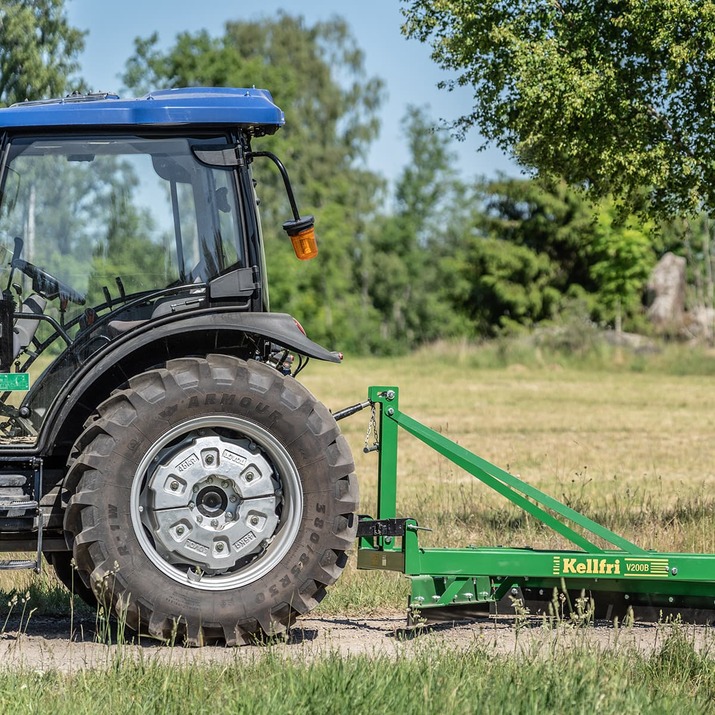

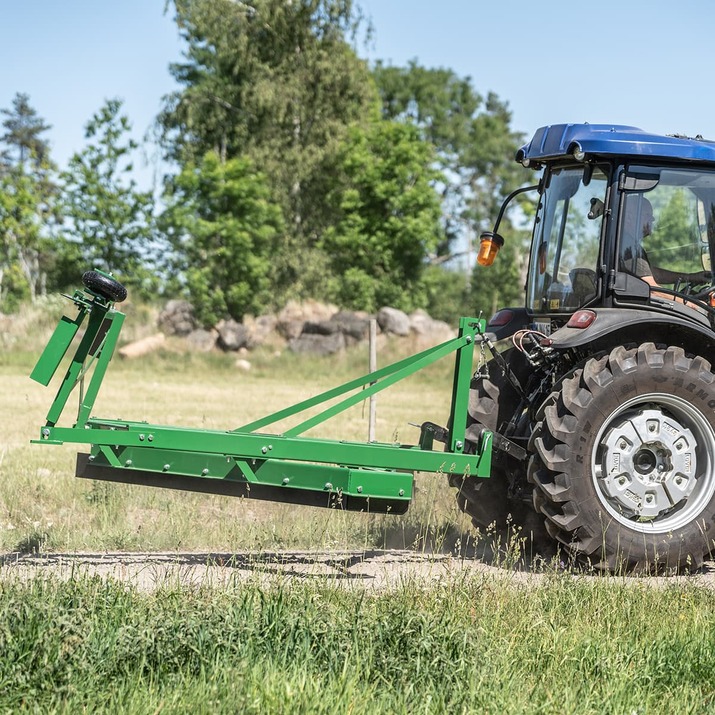

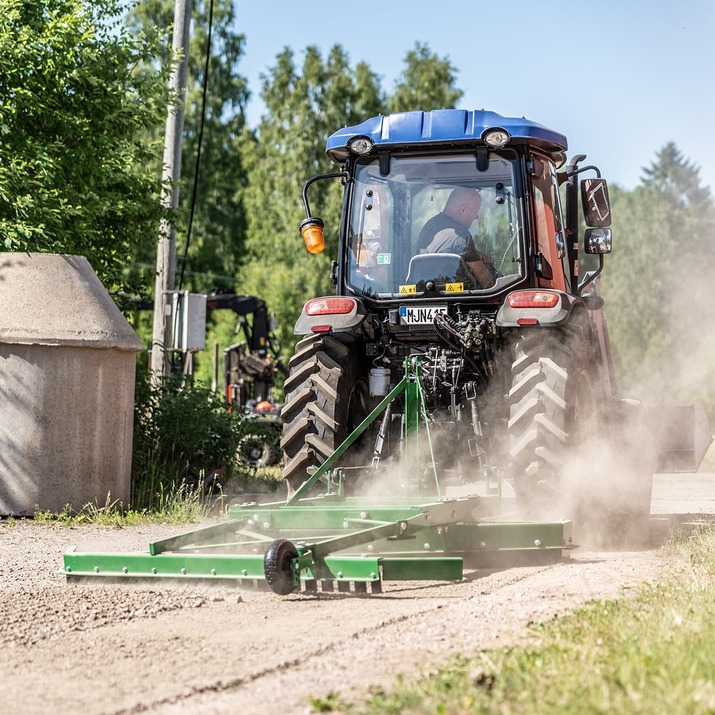

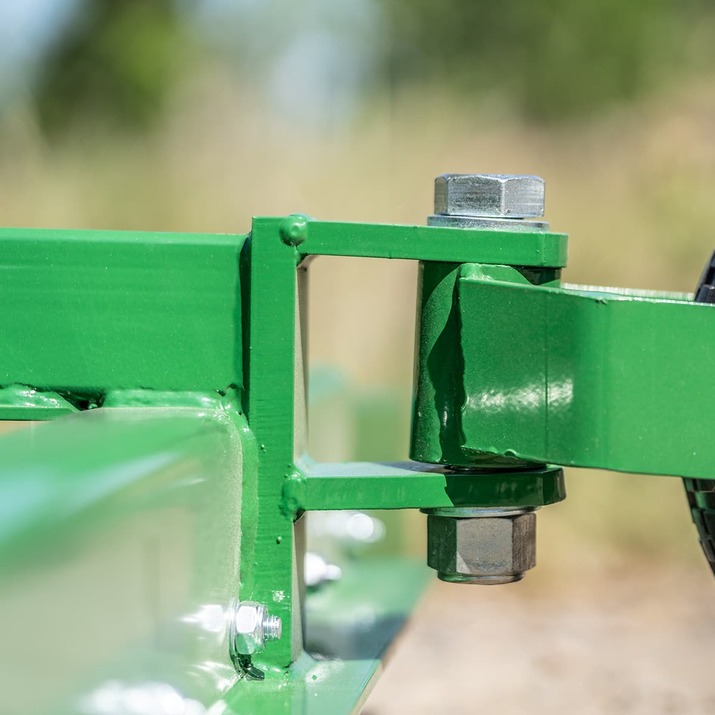

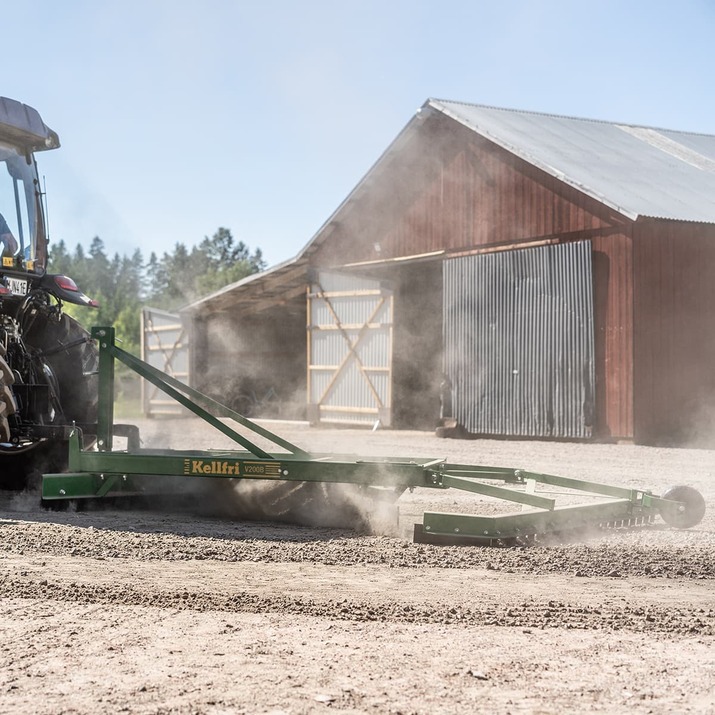

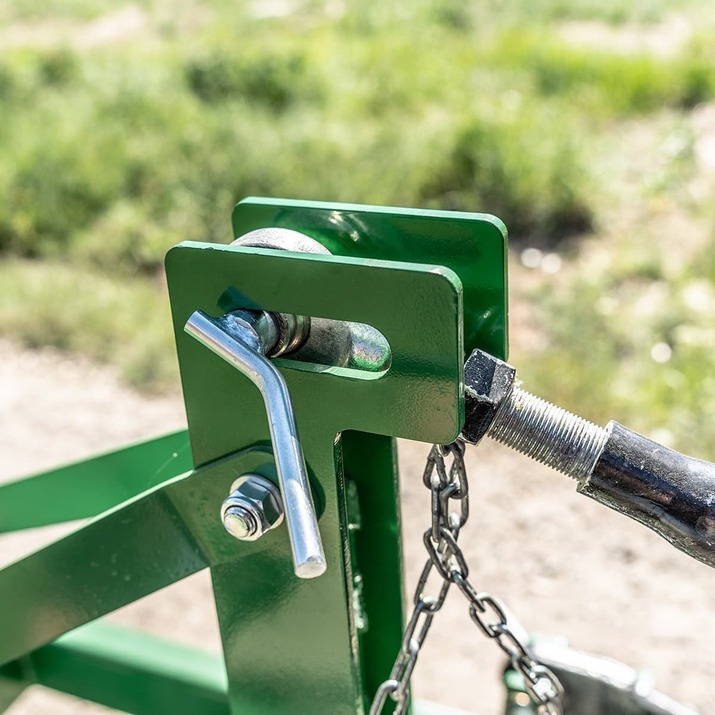

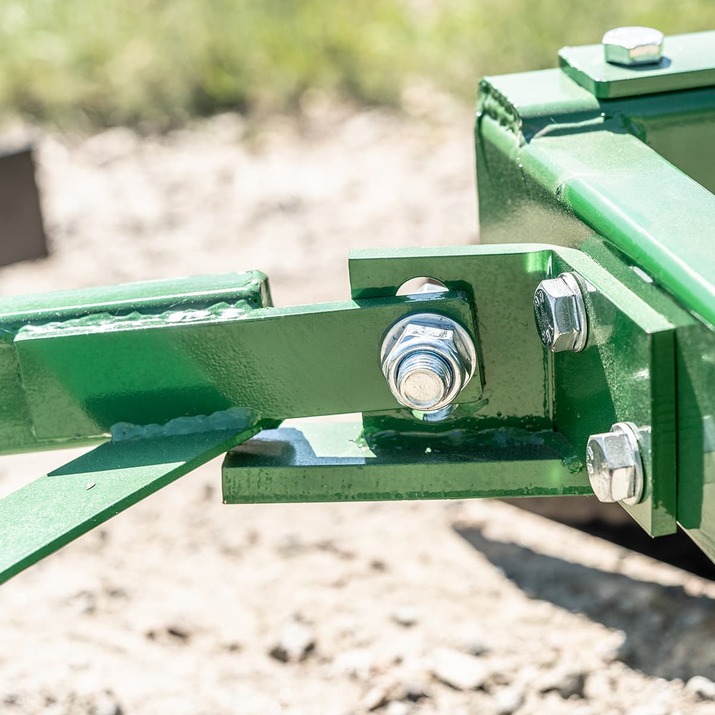

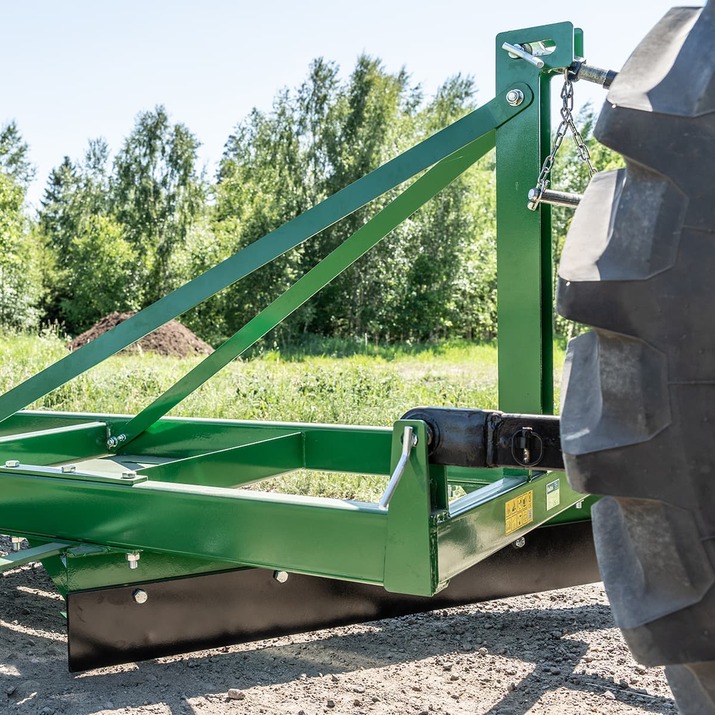

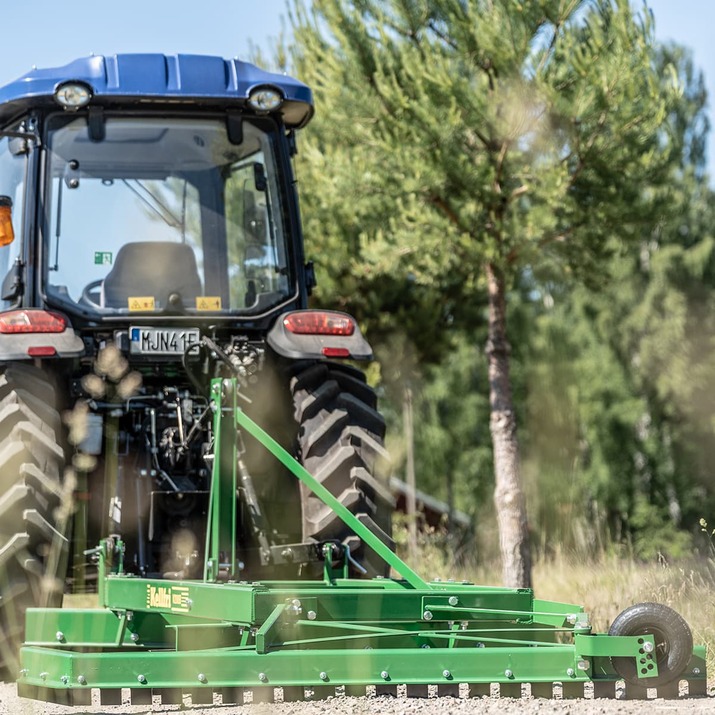

The bolted design has the added advantage of simplified replacements of vital parts during servicing. We have also replaced the wire that holds the upper 3-point linkage against the steel plate, providing a stronger and more stable solution than its predecessor. The road drag has a simple and stable design for three-point hitches on tractors. The working width is 2 metres and the recommended road width is 3.5 metres.

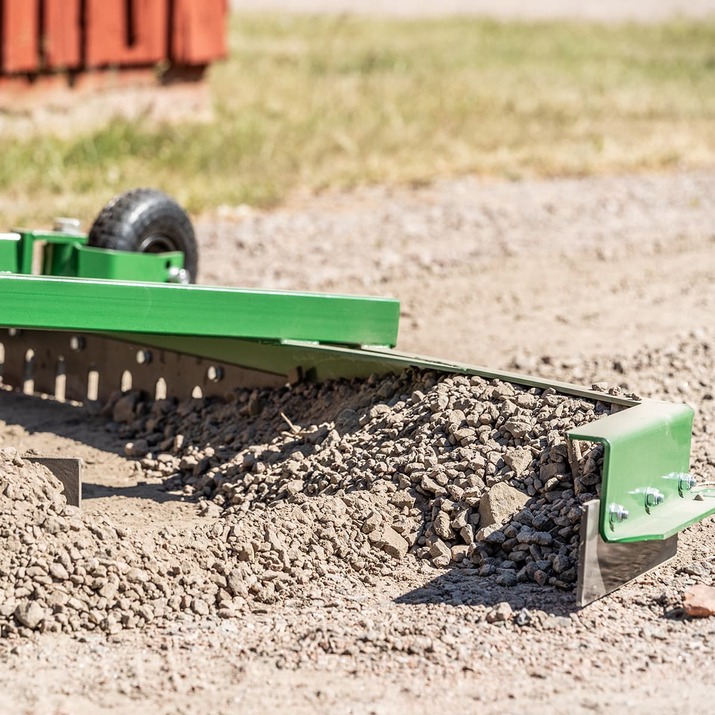

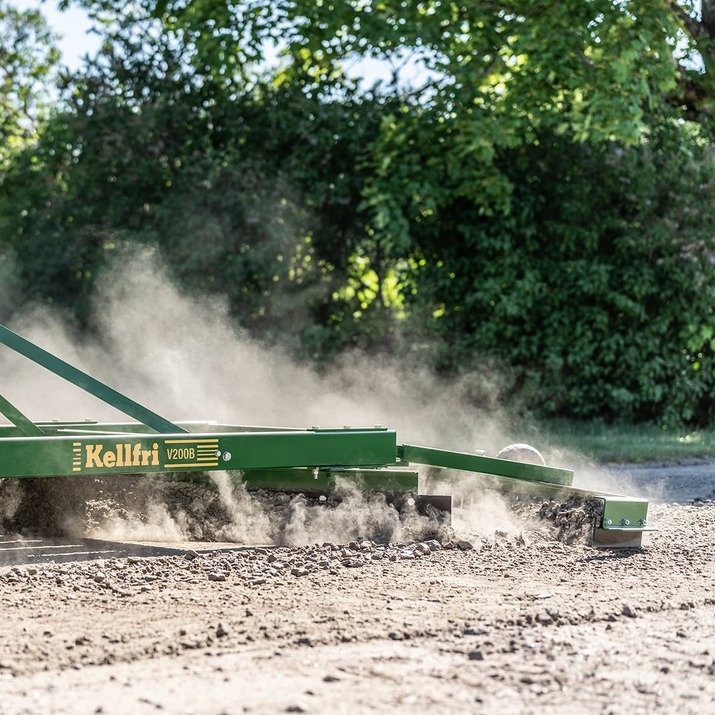

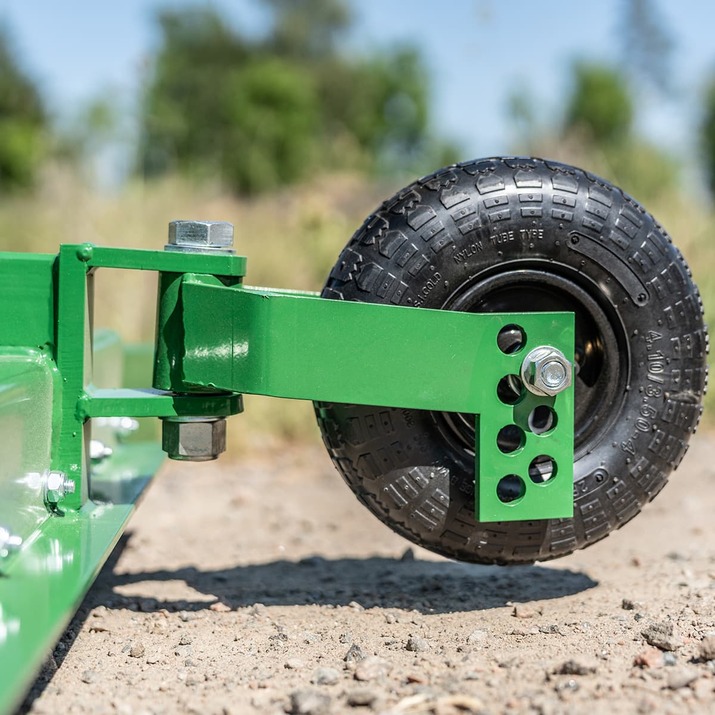

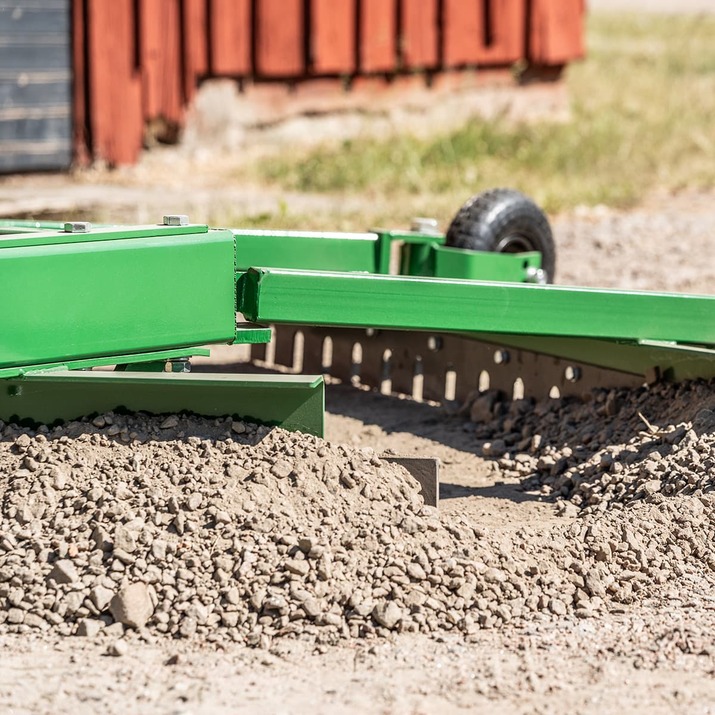

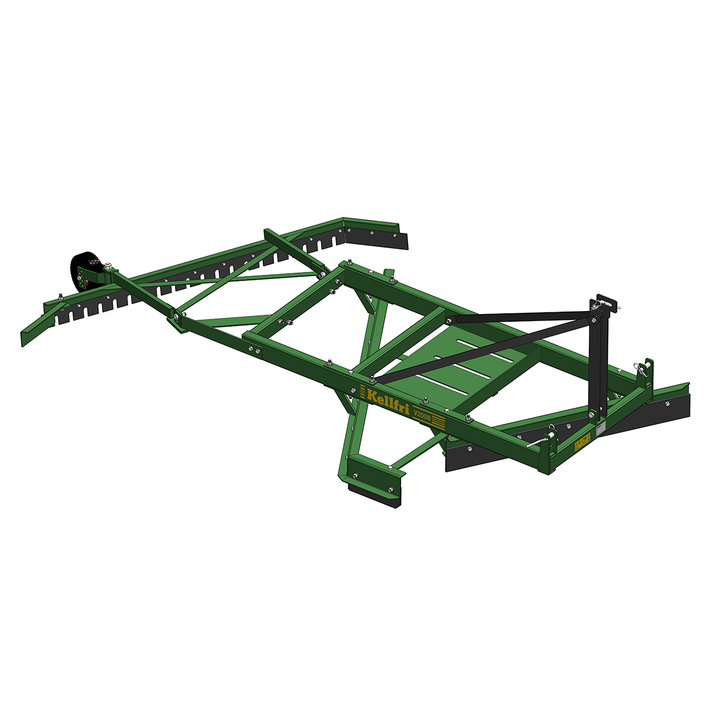

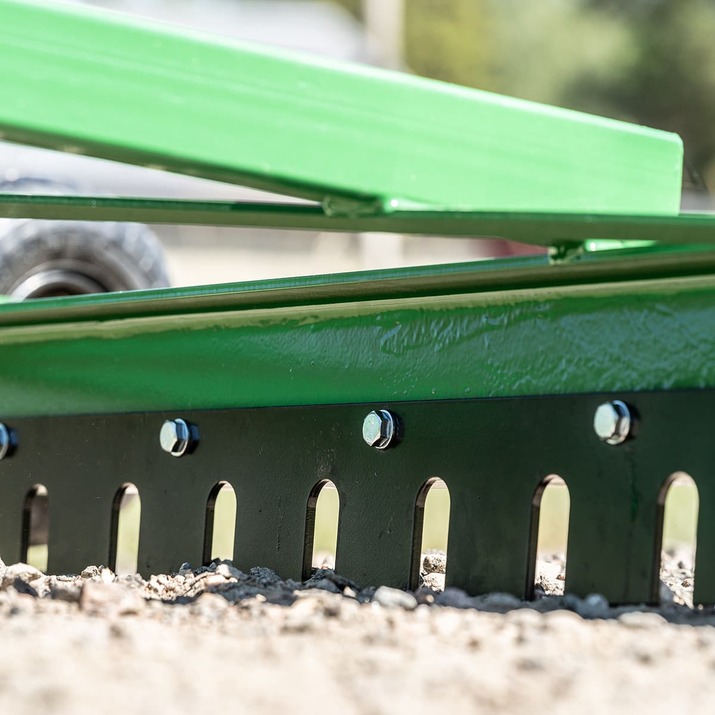

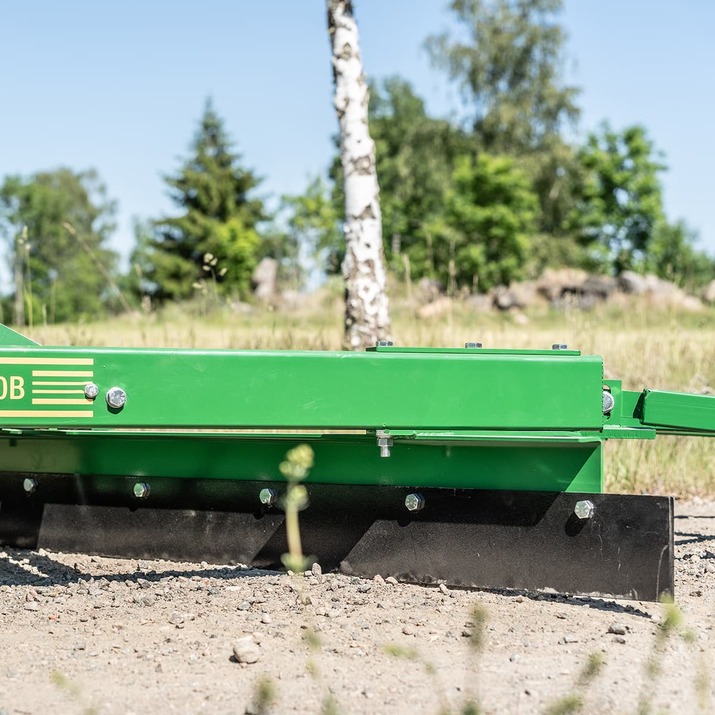

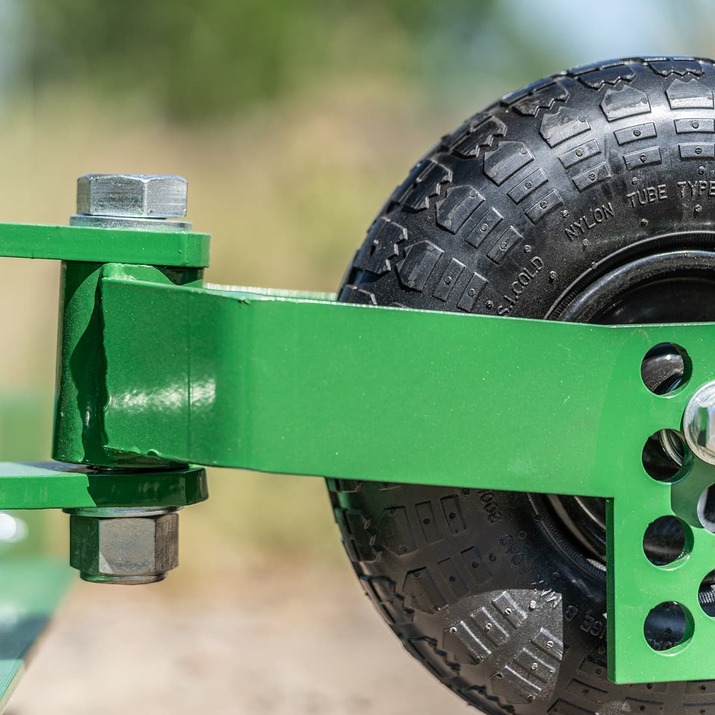

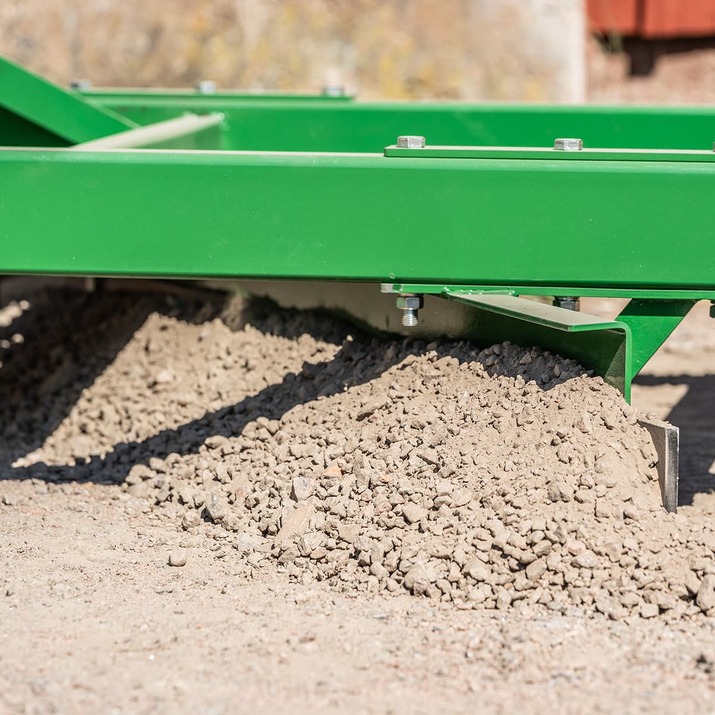

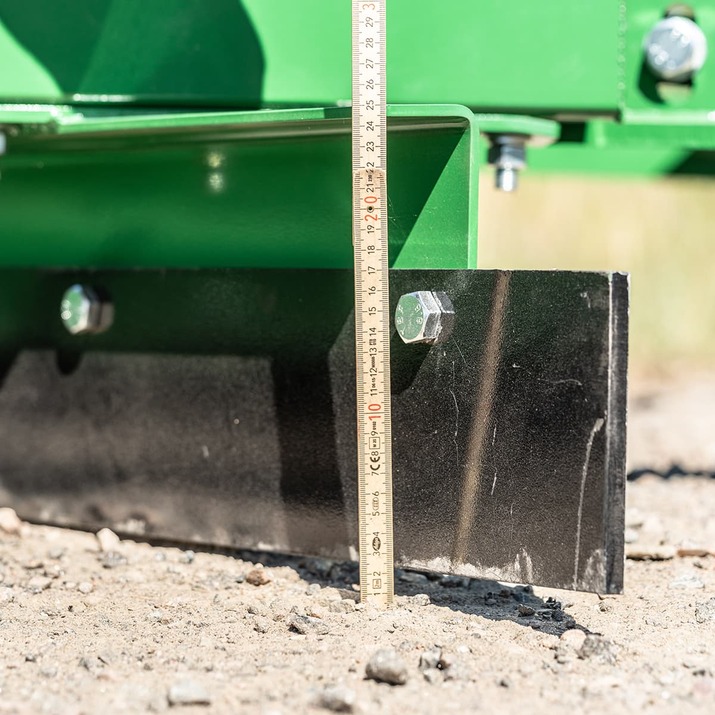

The road drag has high blades at proven cutting angles that produce excellent scraping results. The gravel spreader is equipped with a wheel that is adjustable to seven heights, ensuring optimal spreading from the rake. In addition, we have added an additional pivoting stone deflector wing to the gravel spreader, making it easier to remove bulkier material.

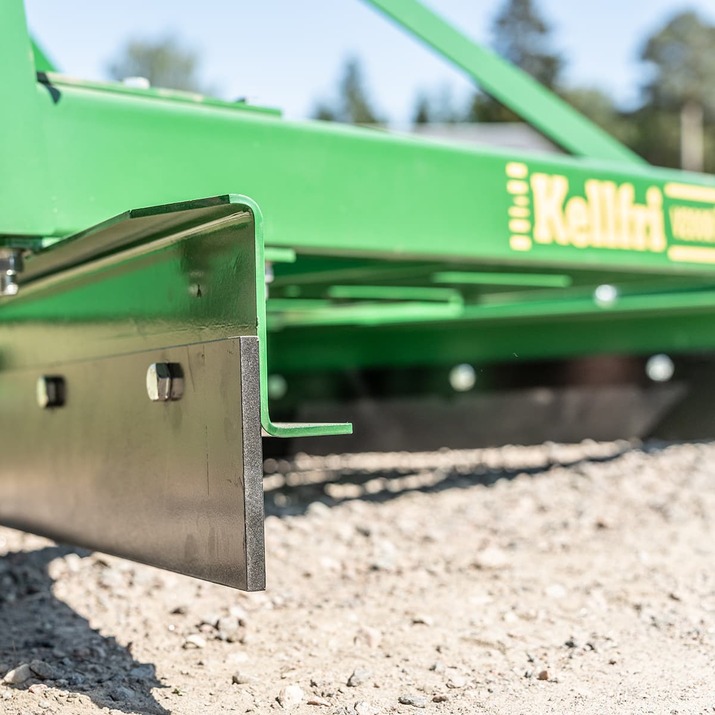

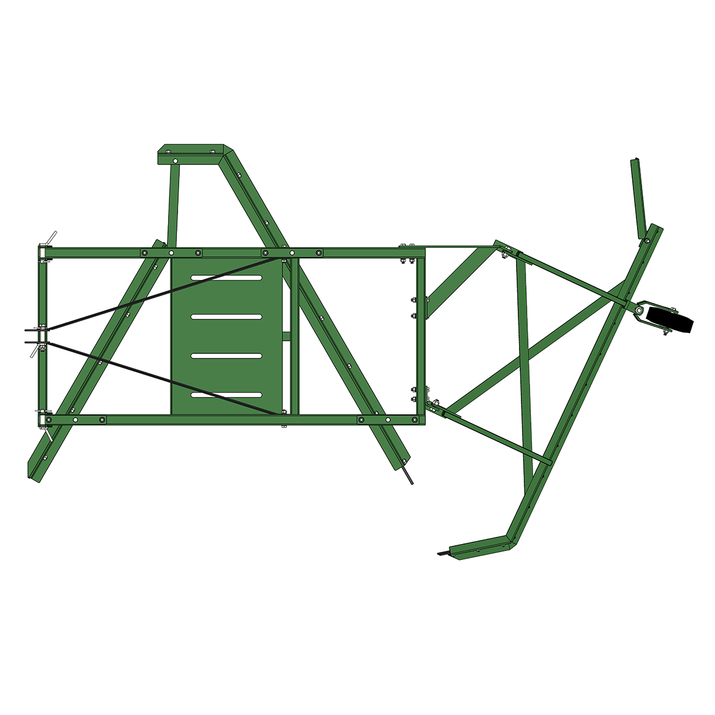

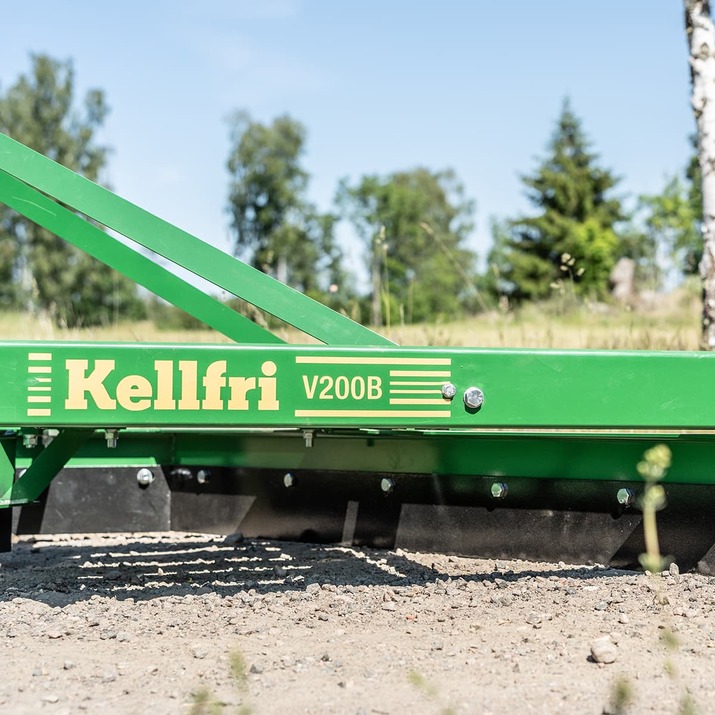

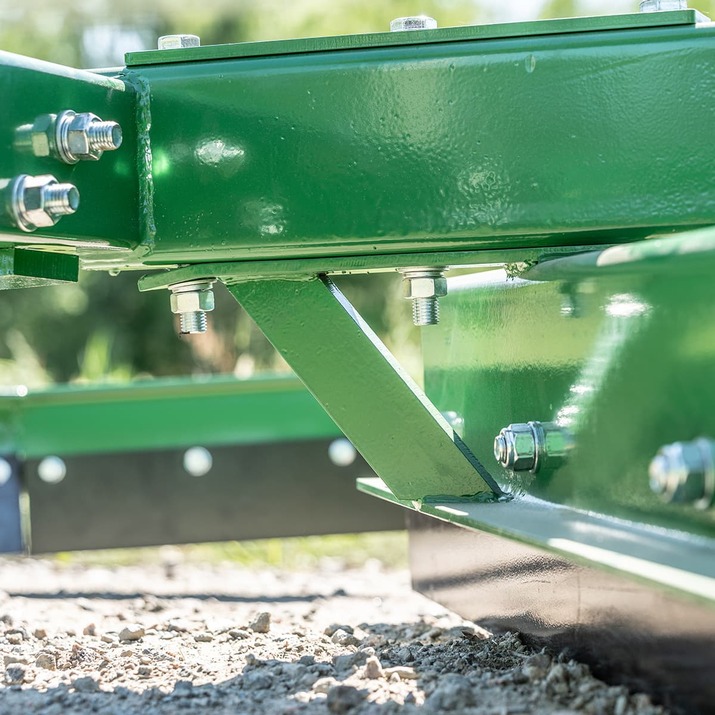

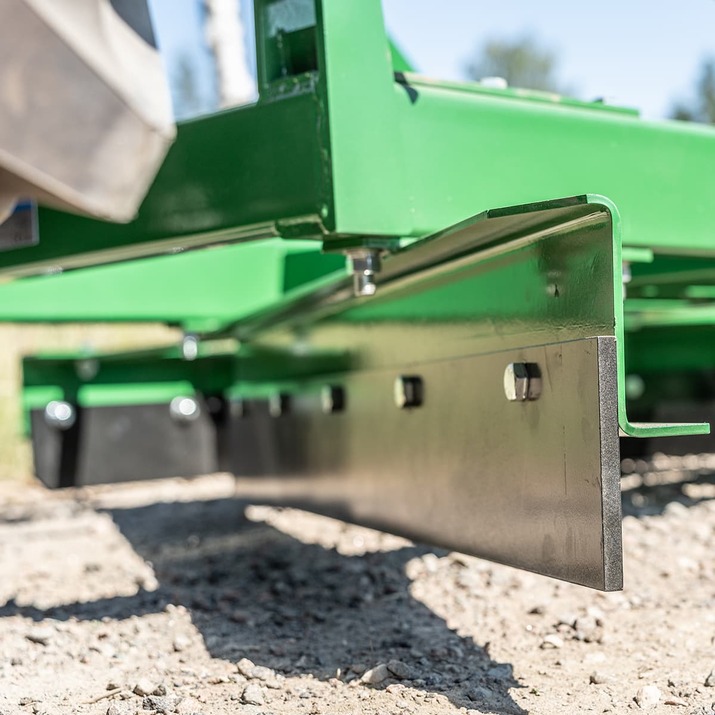

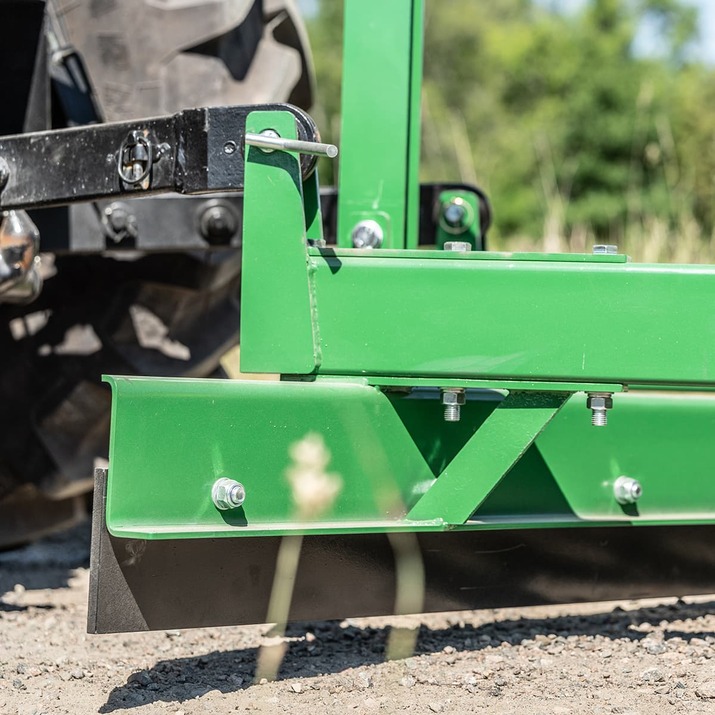

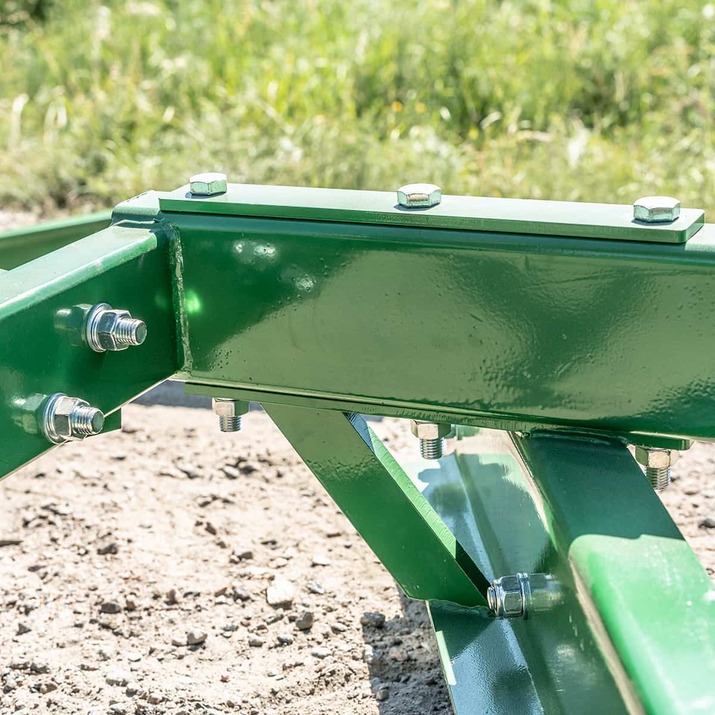

The Z-profile for attaching the blades for optimal function and strength is designed to prevent material from going over the blade and the bottom edge is bent backwards for optimal strength. The drag has a strong hollow structural section for maximum stability during operation.
Video clip show older road drag model, 37-V200.
