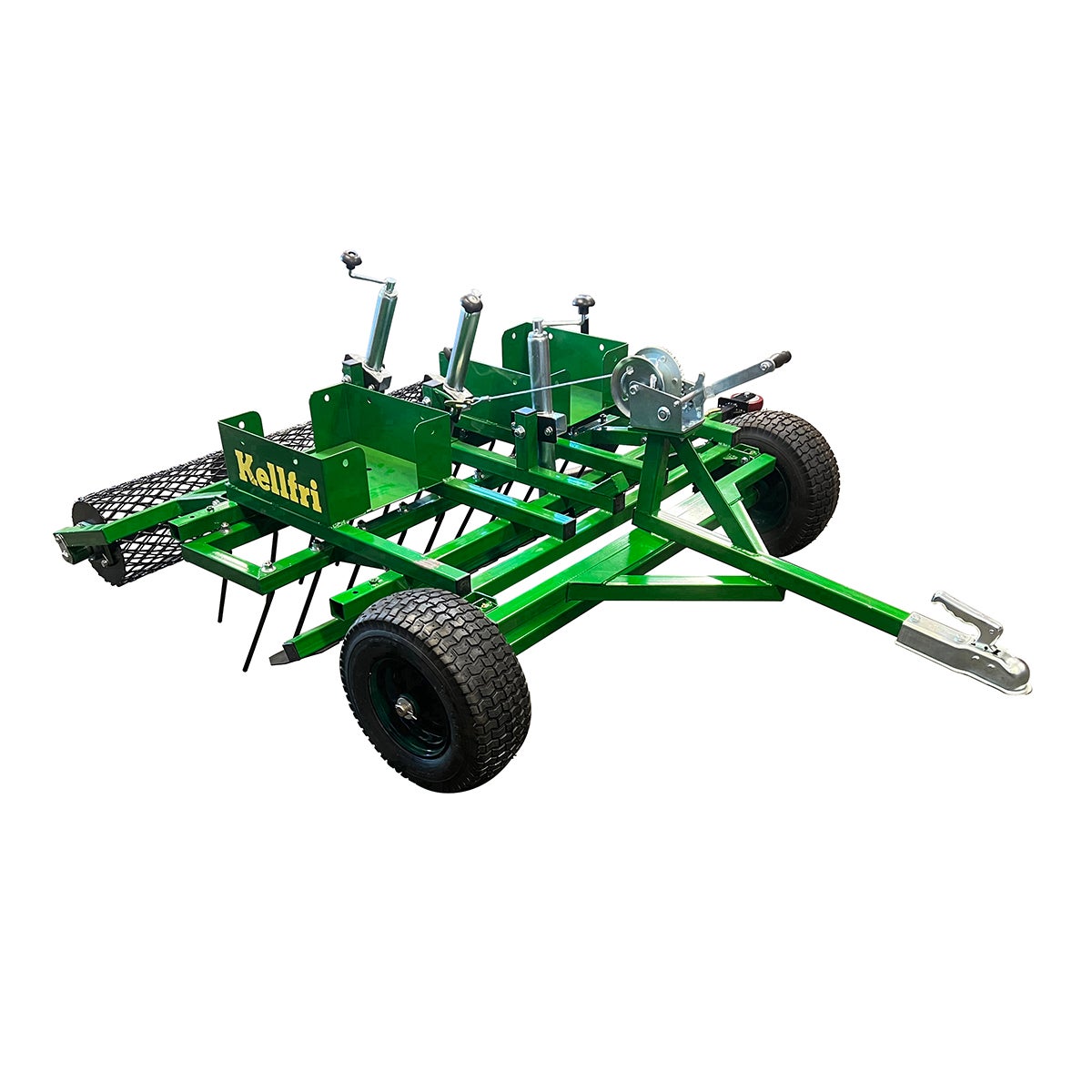

Arena harrow

Sturdy, affordable arena harrow for various types of surfaces

• Perimeter scraper with variable adjustment

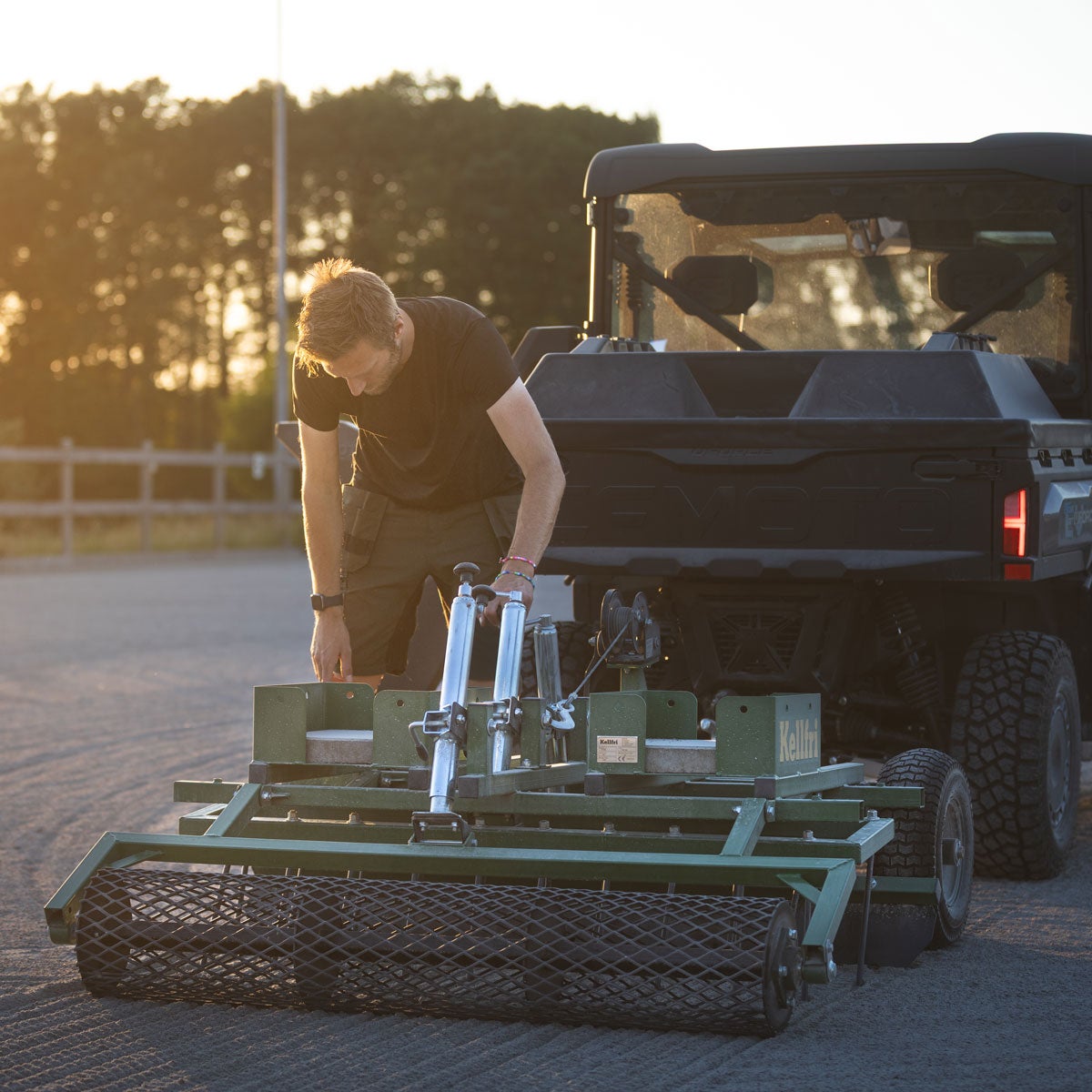

• Height-adjustable with crank handles

• Support wheel frames with lateral adjustment

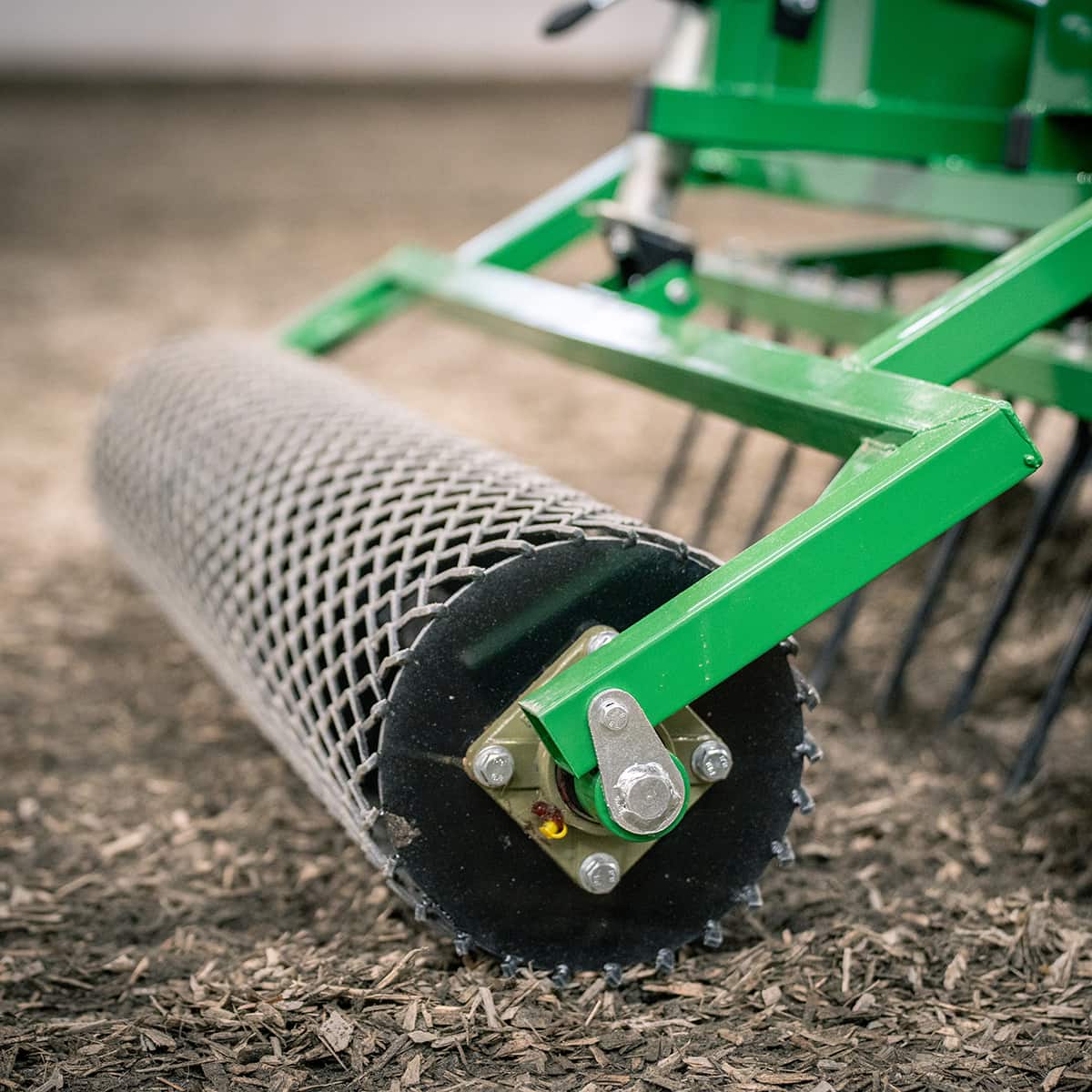

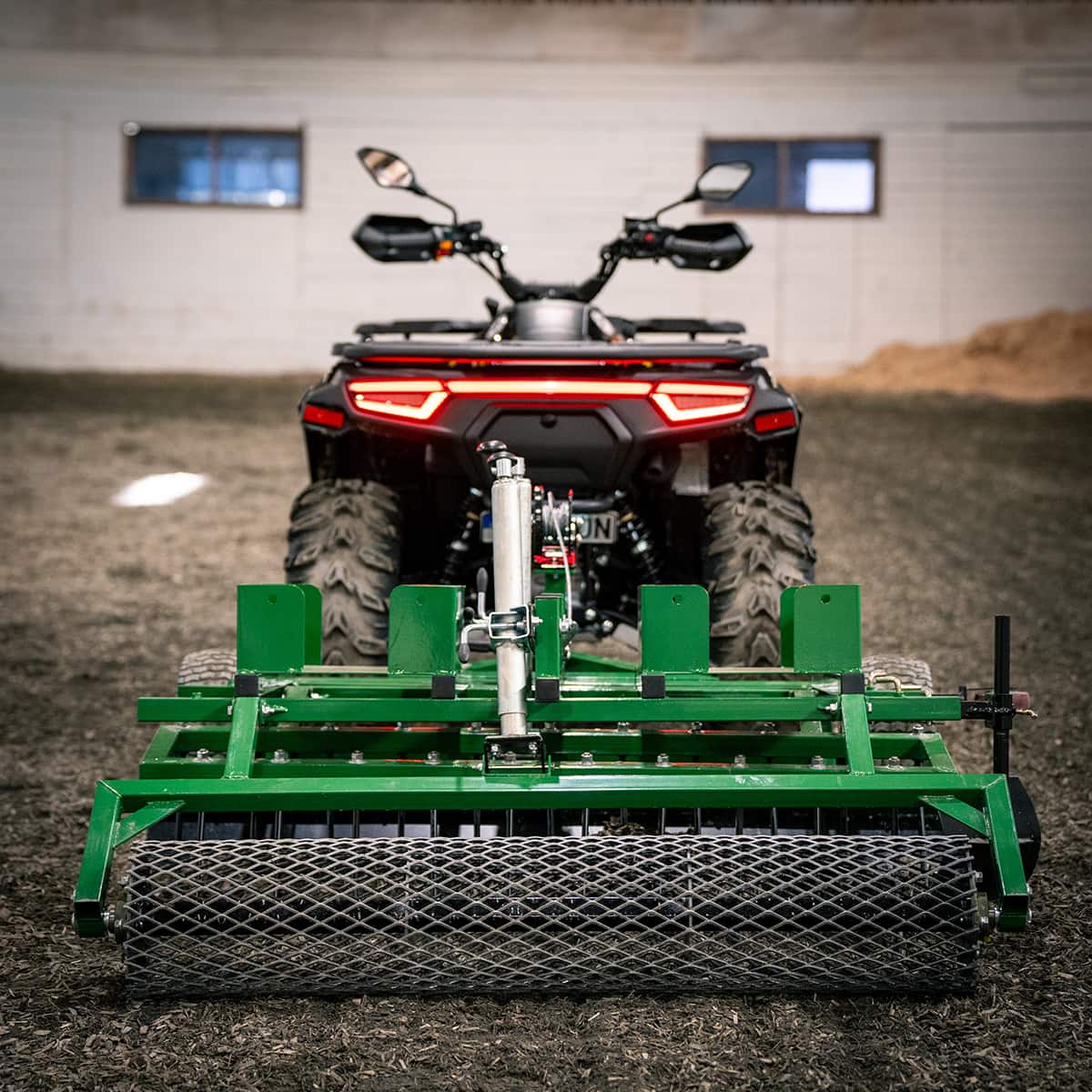

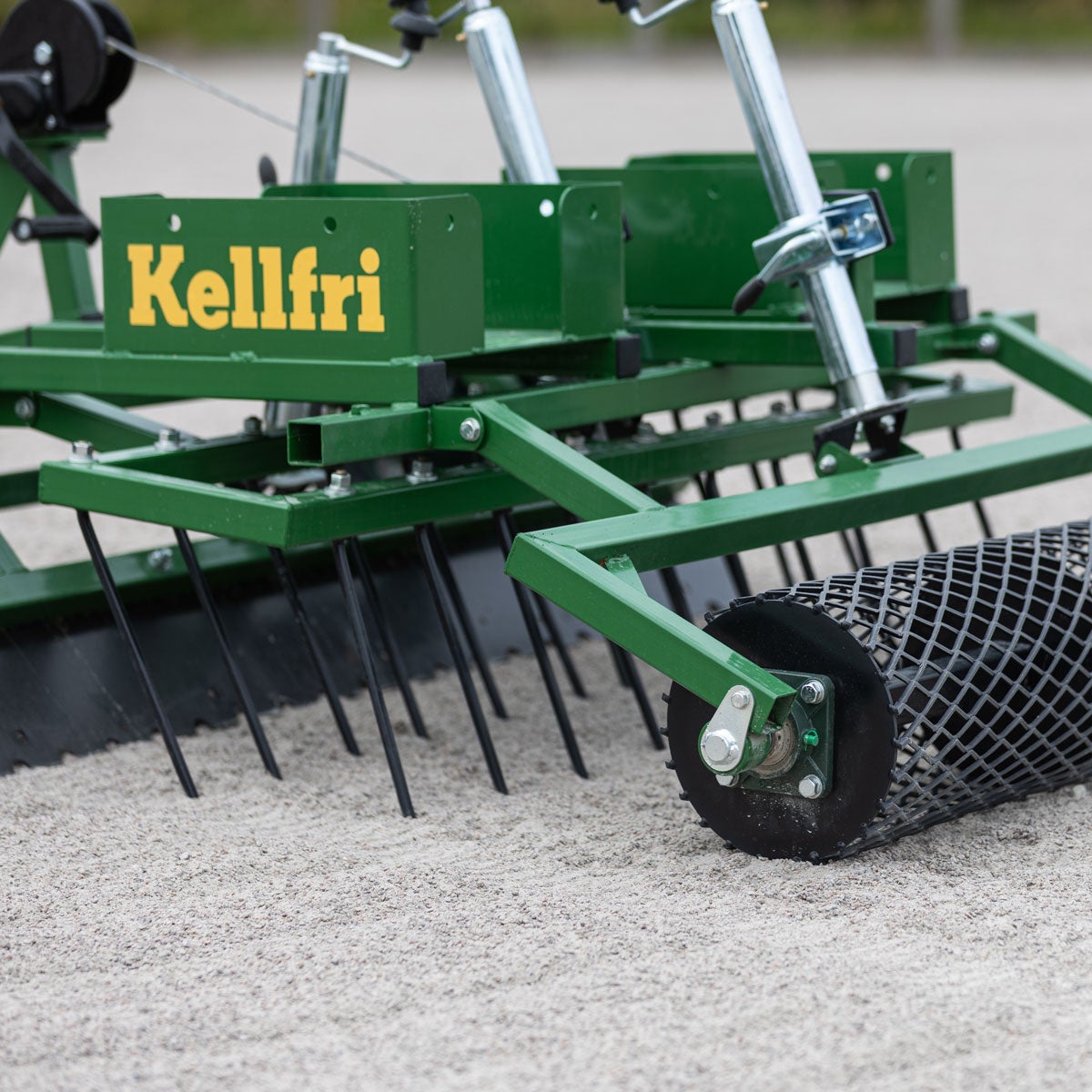

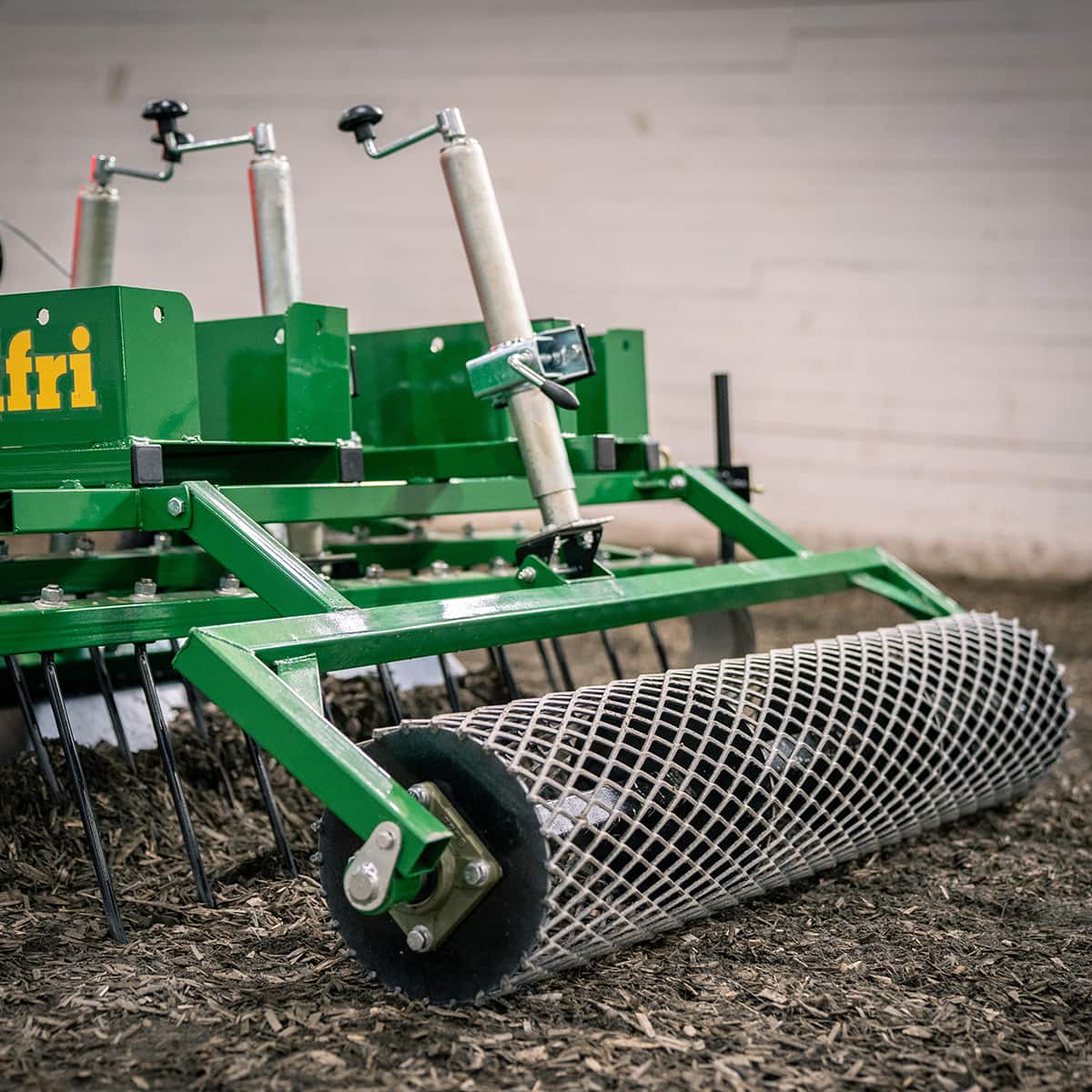

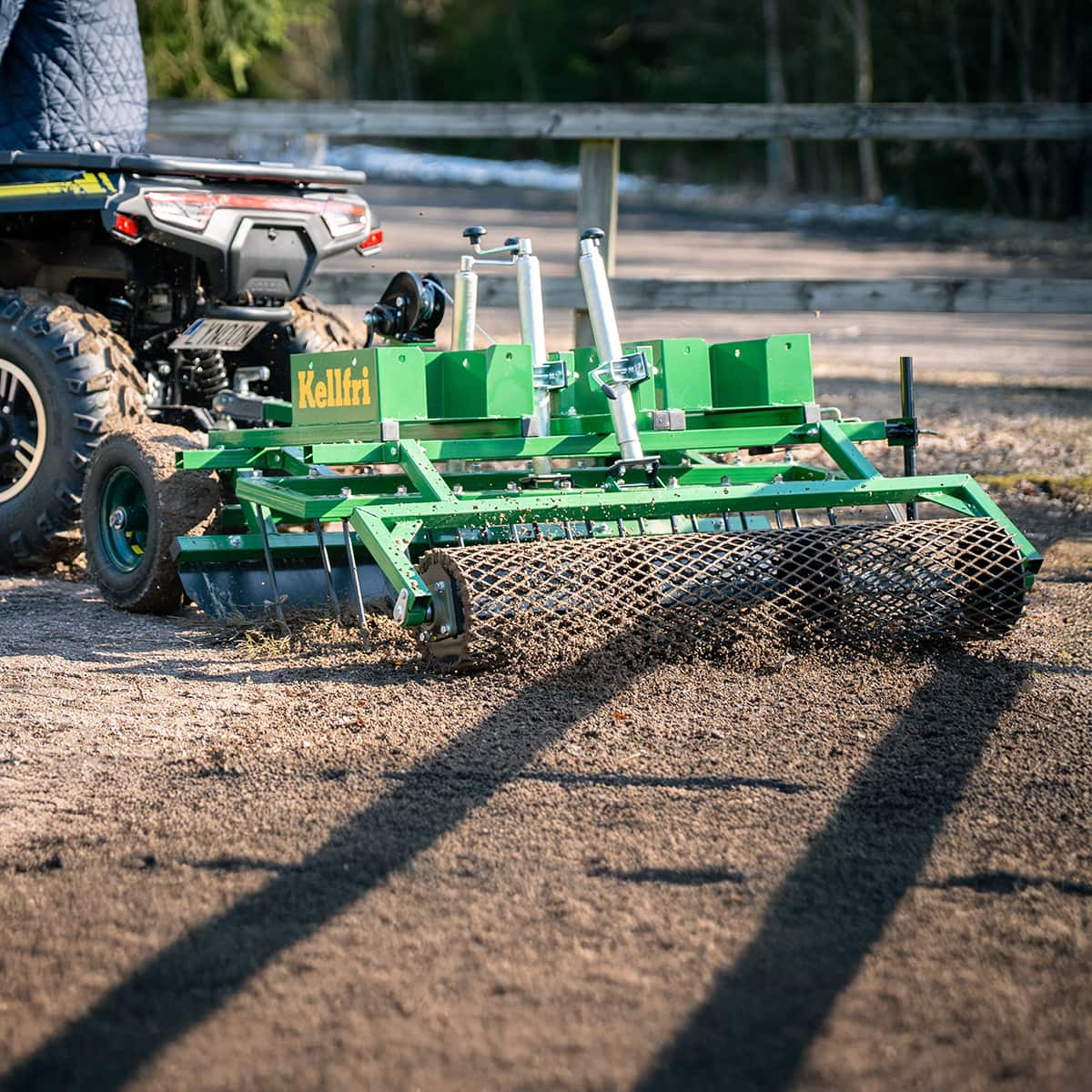

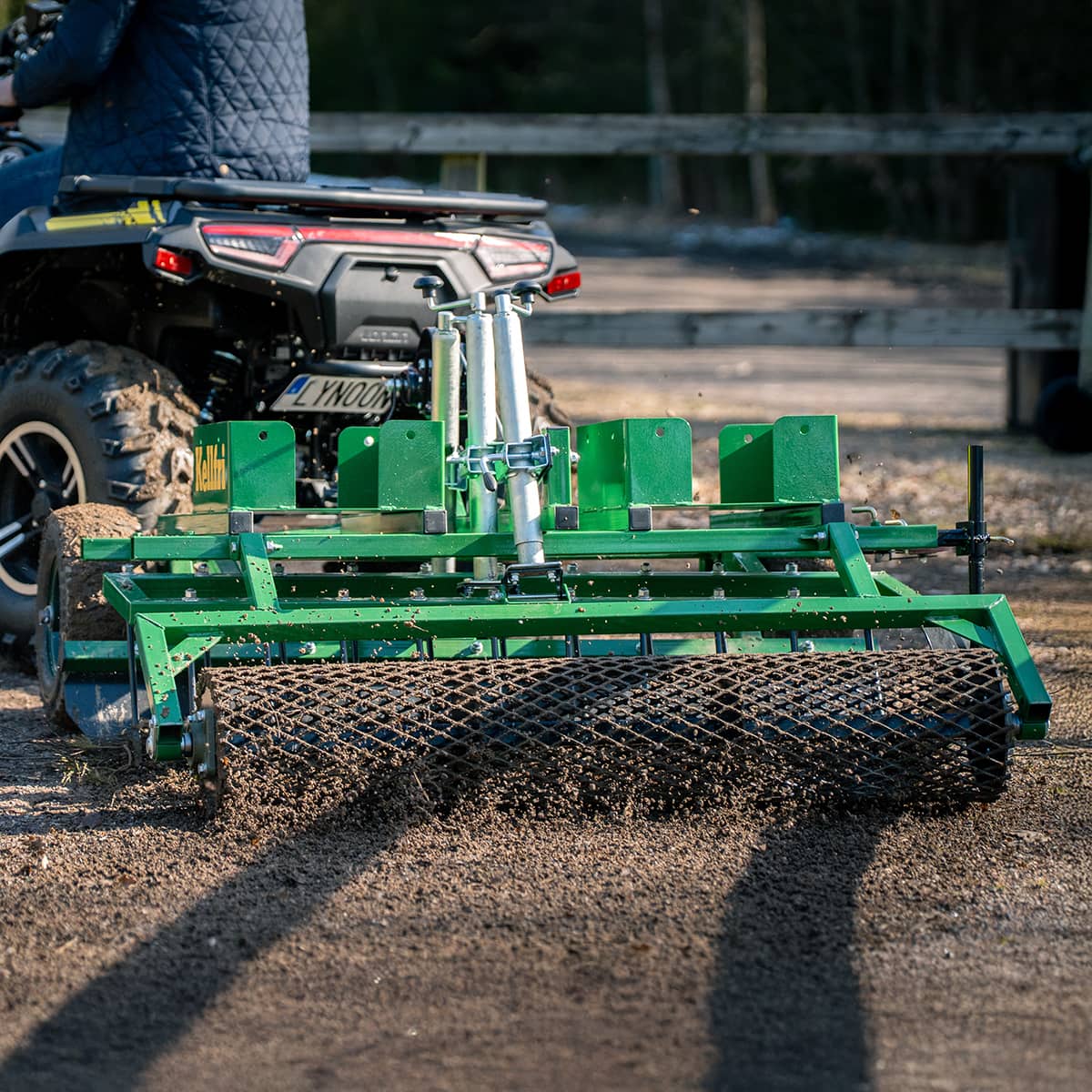

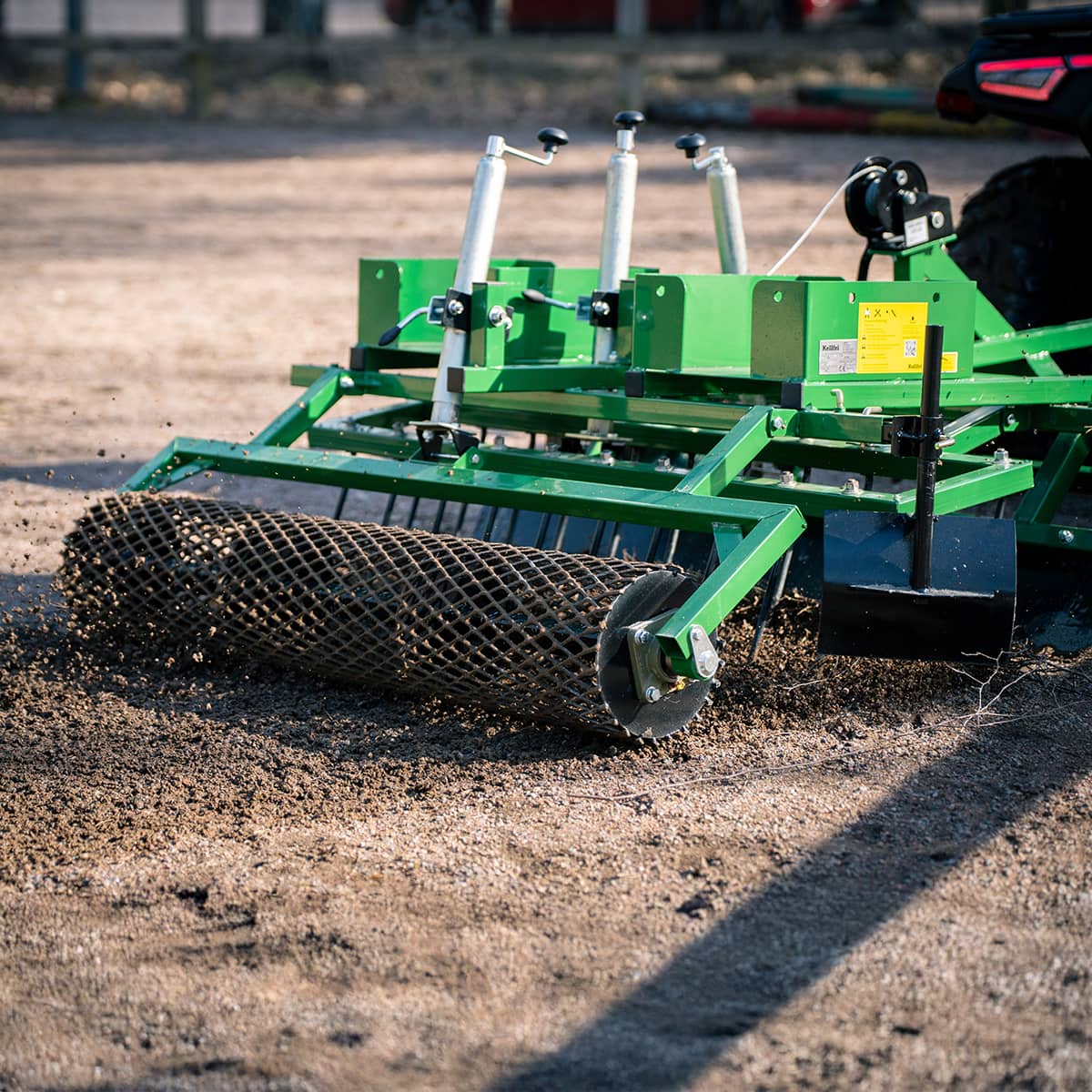

• Tubular roller that compresses the surface

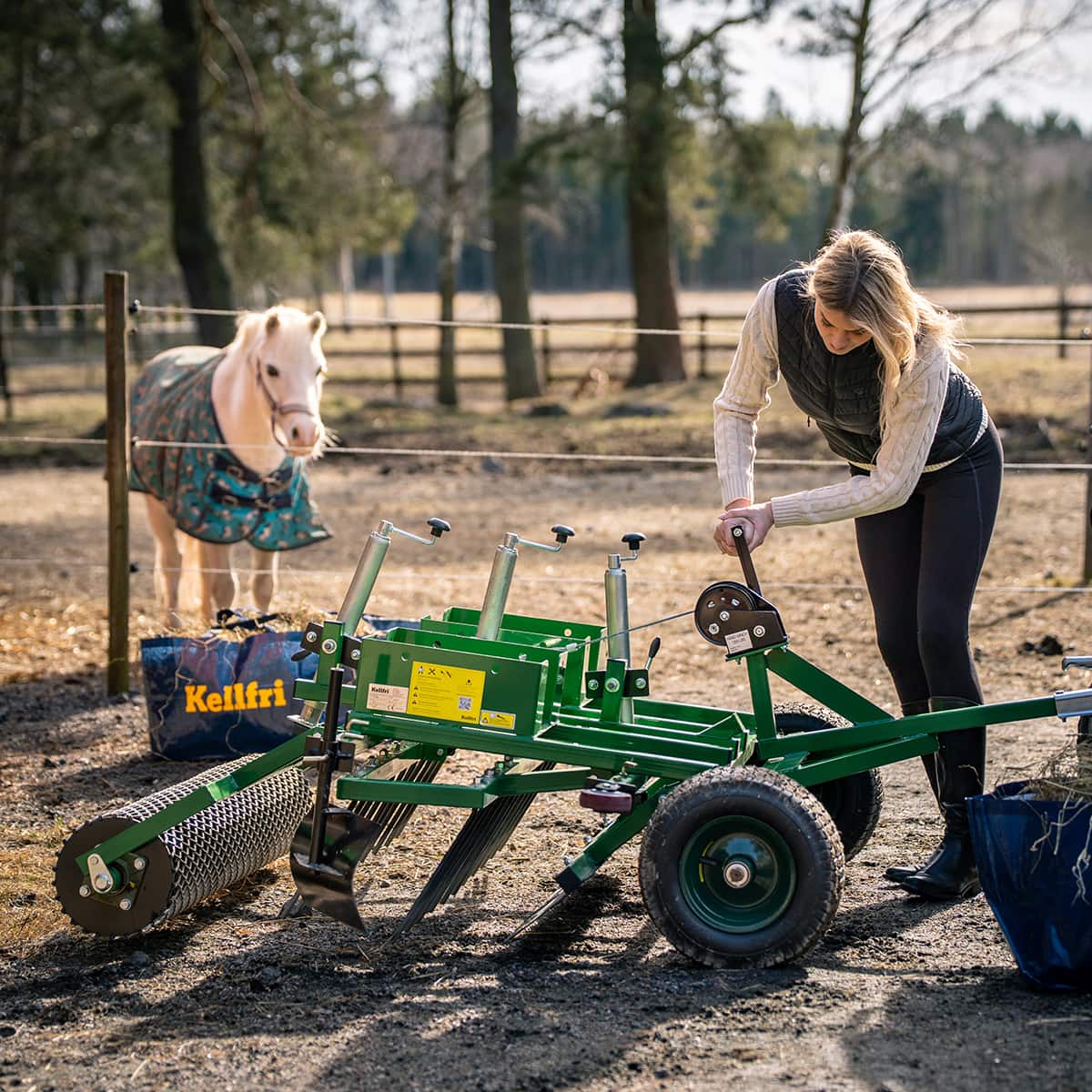

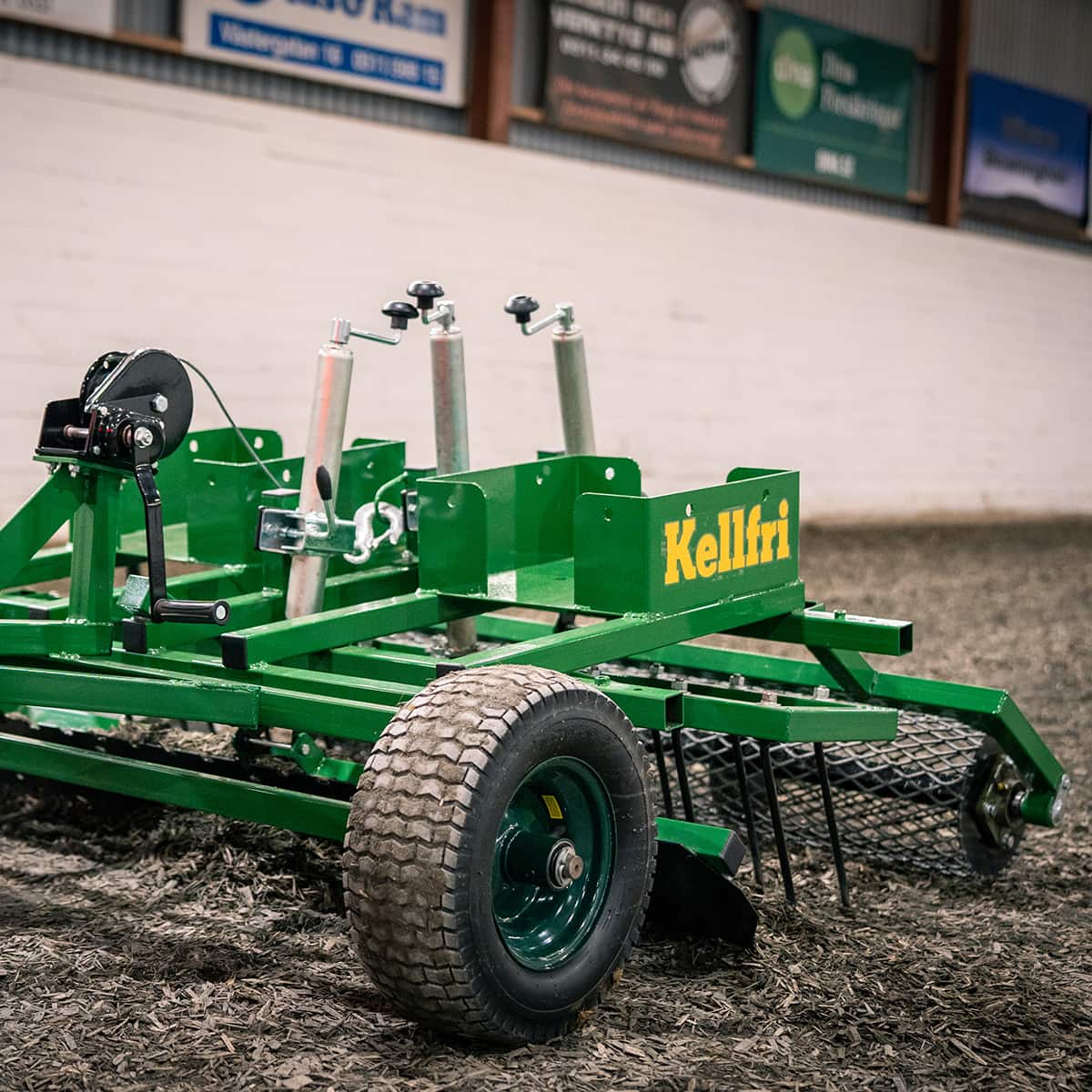

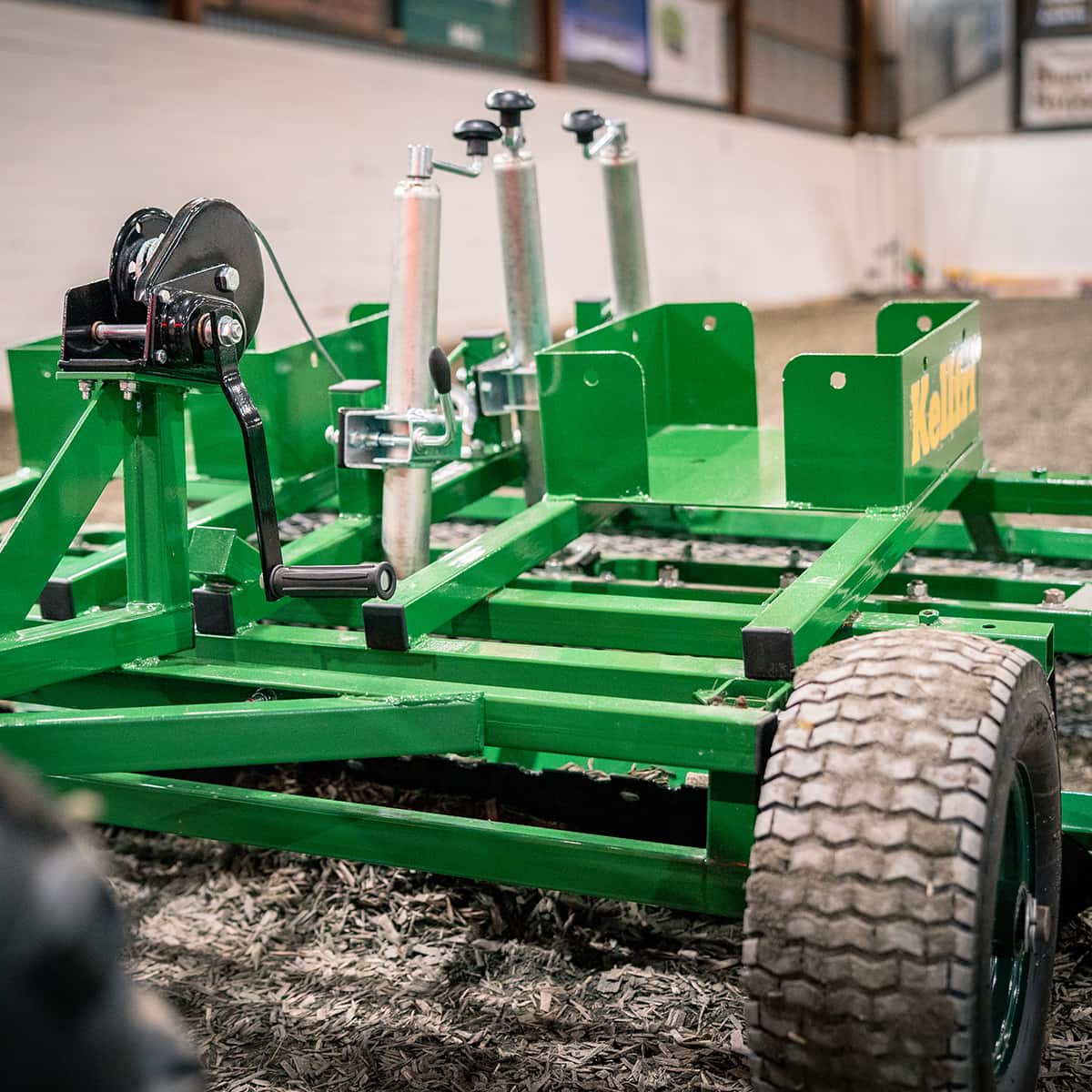

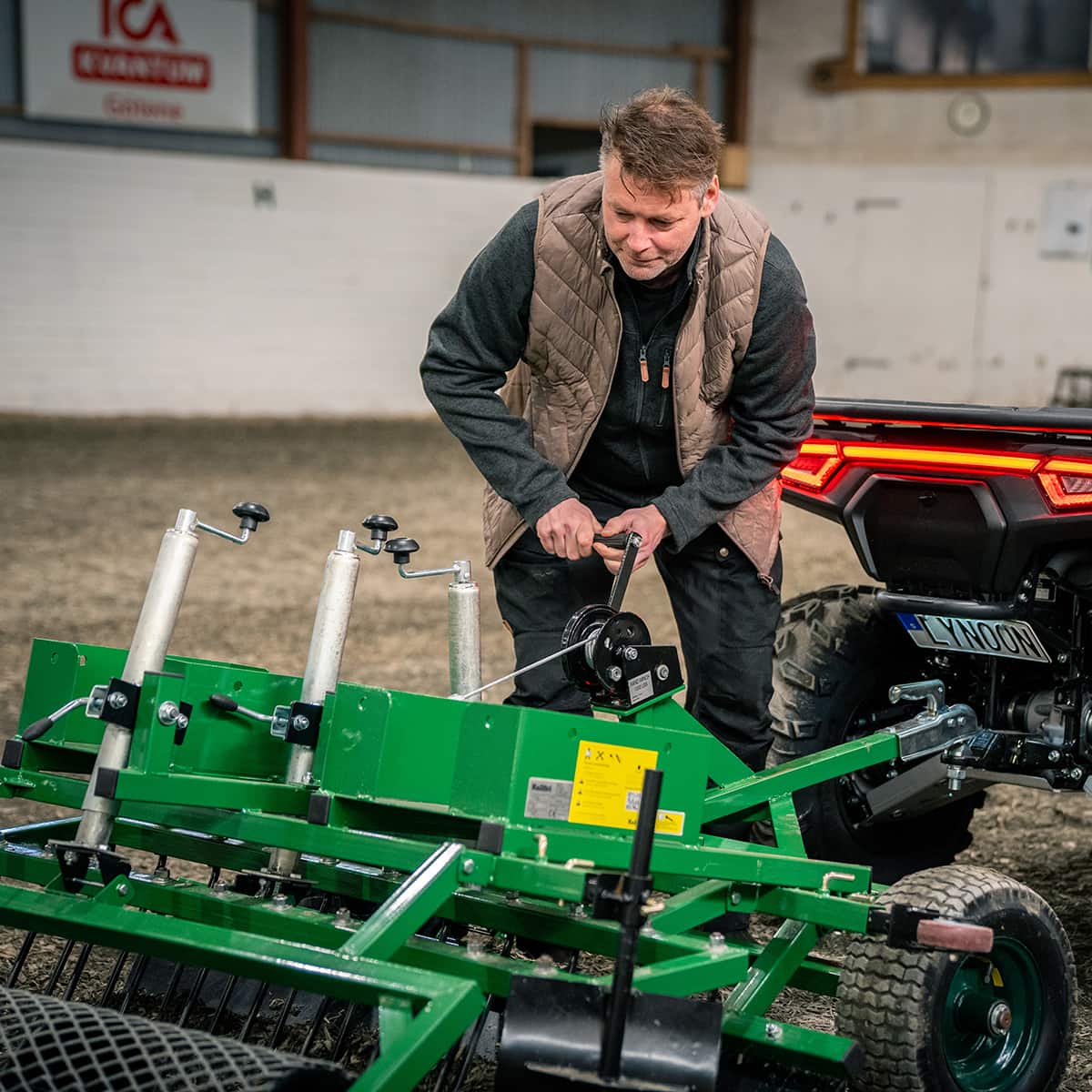

• Winch for raising the harrow during transport

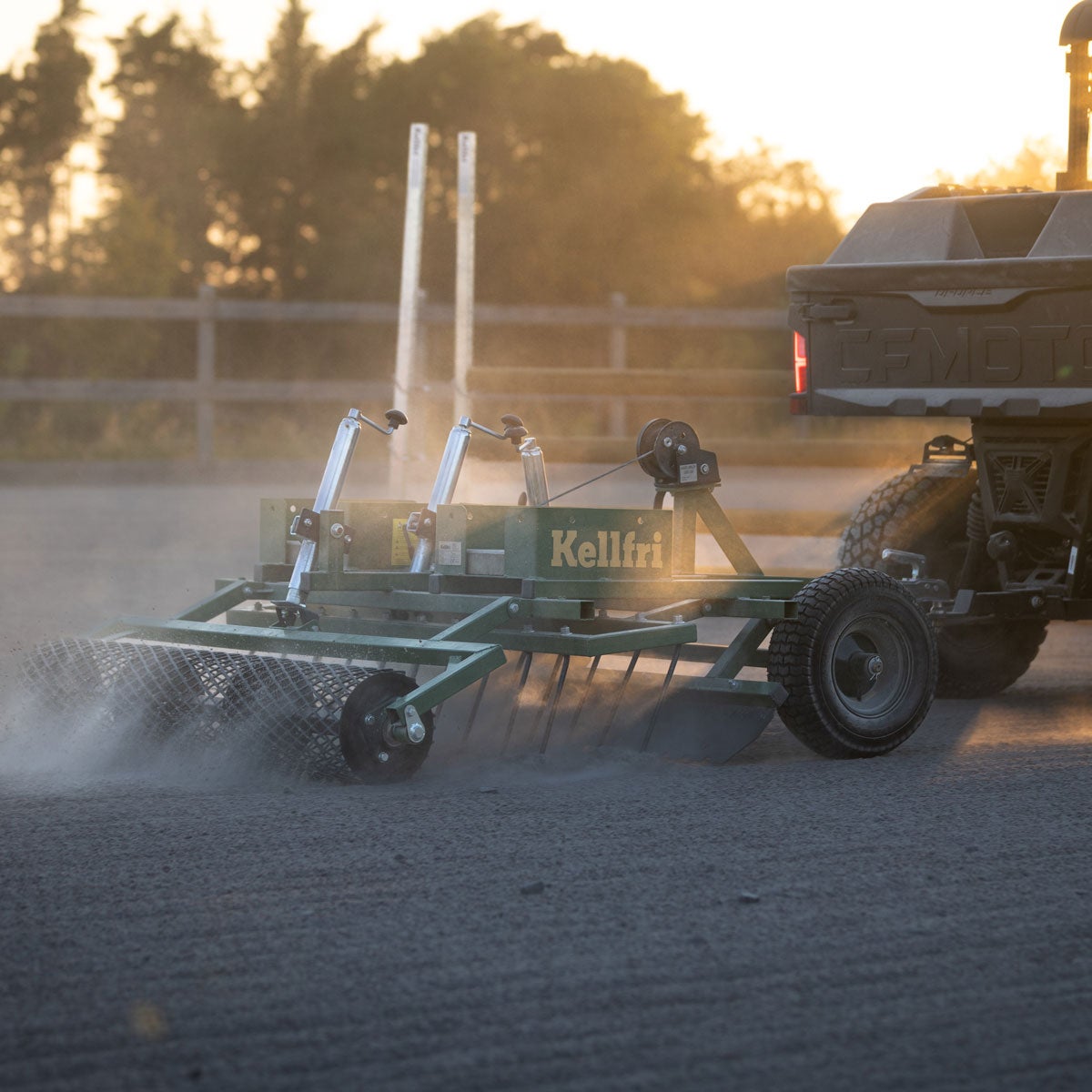

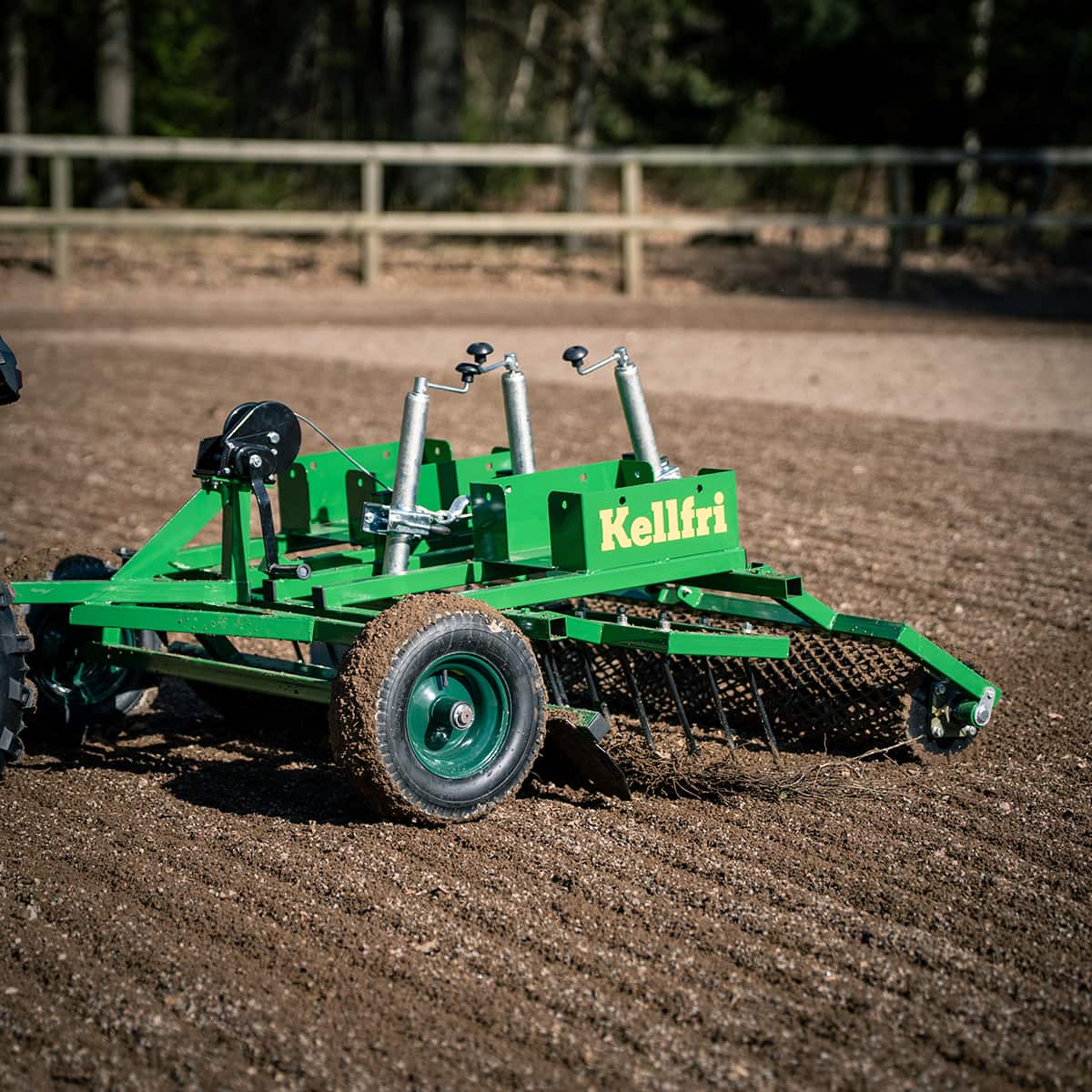

Harrowing on different types of surface

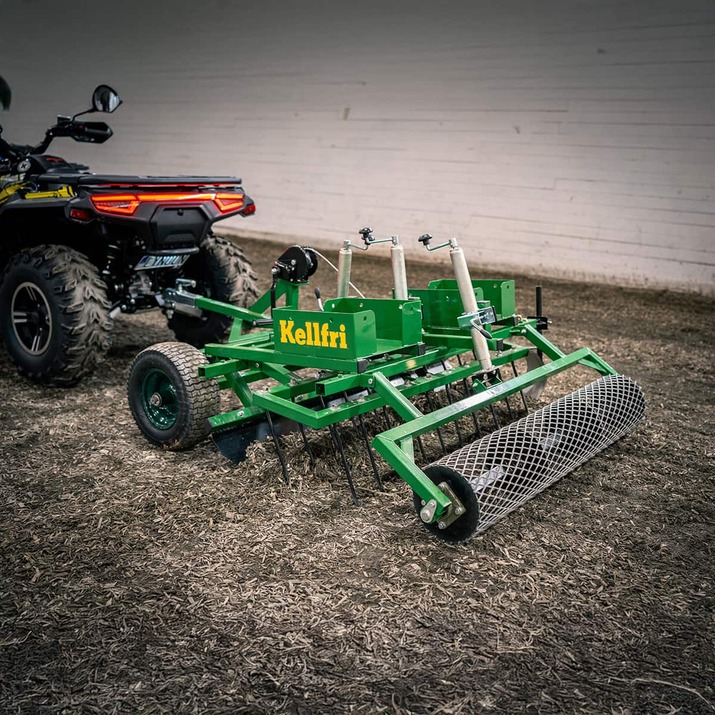

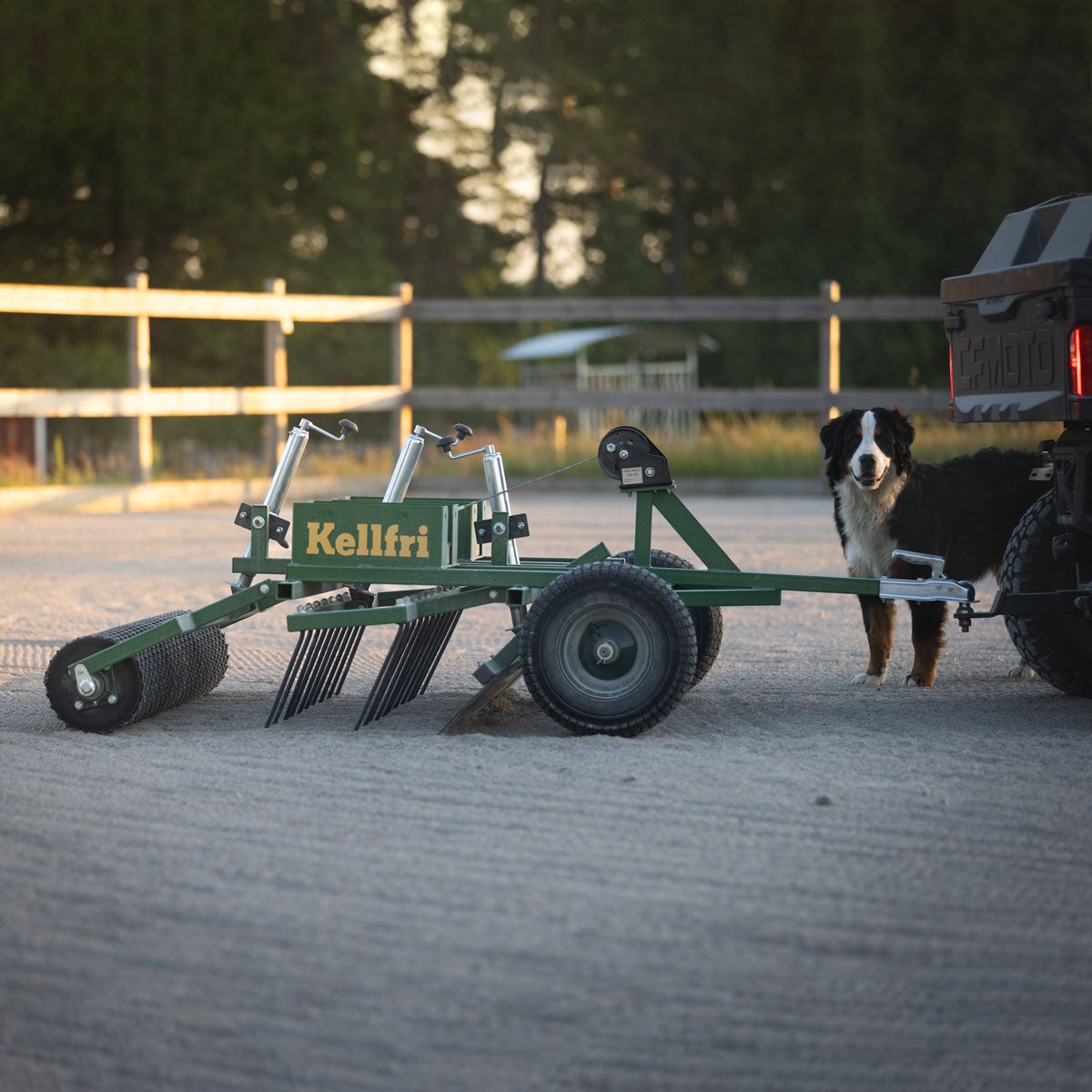

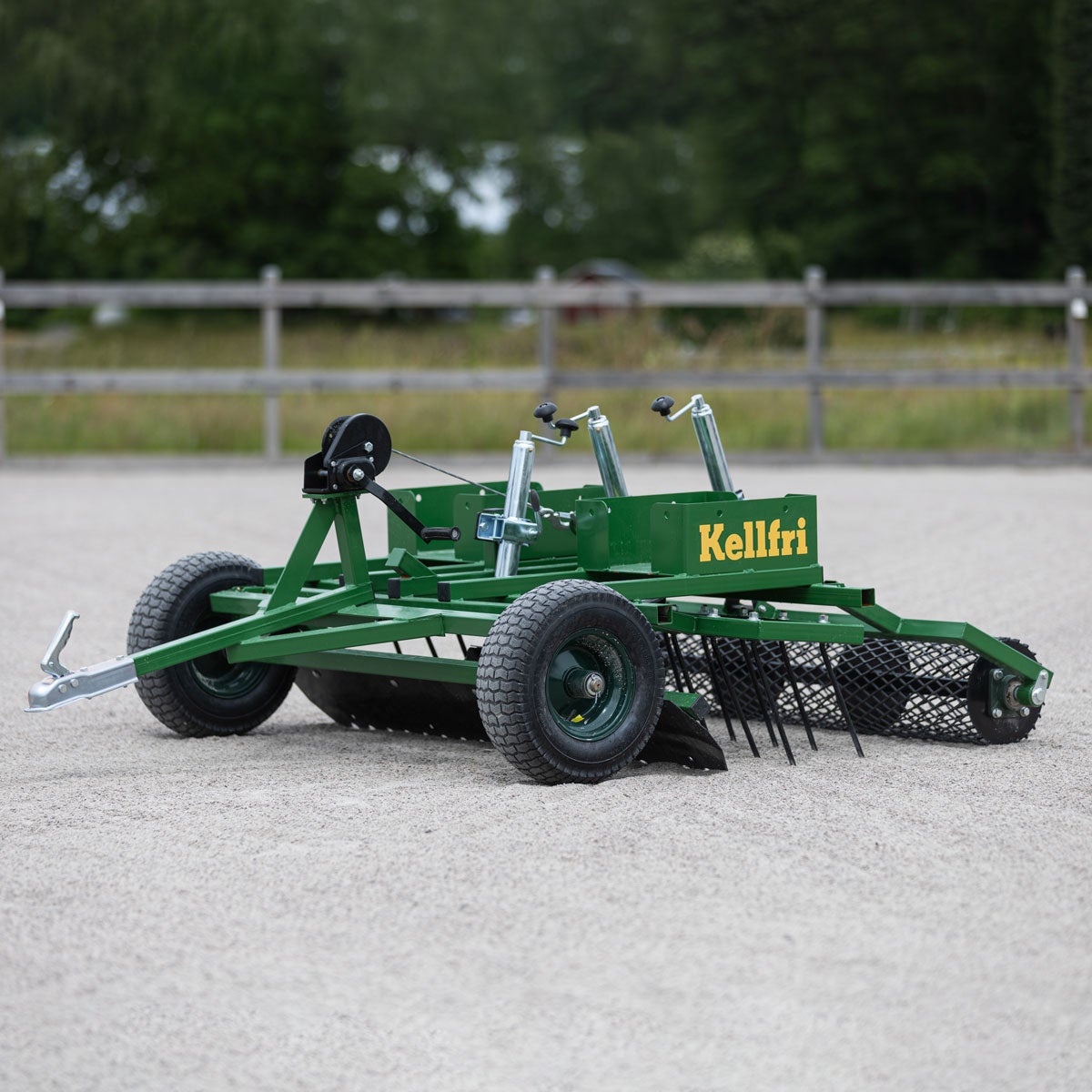

The 2023 model of Kellfri’s top-selling Arena Harrow RBH for ATVs has several updates to enhance comfort, efficiency and ease-of-use. The simple-to-use design of the arena harrow restores and maintains high-quality riding surfaces quickly and easily.

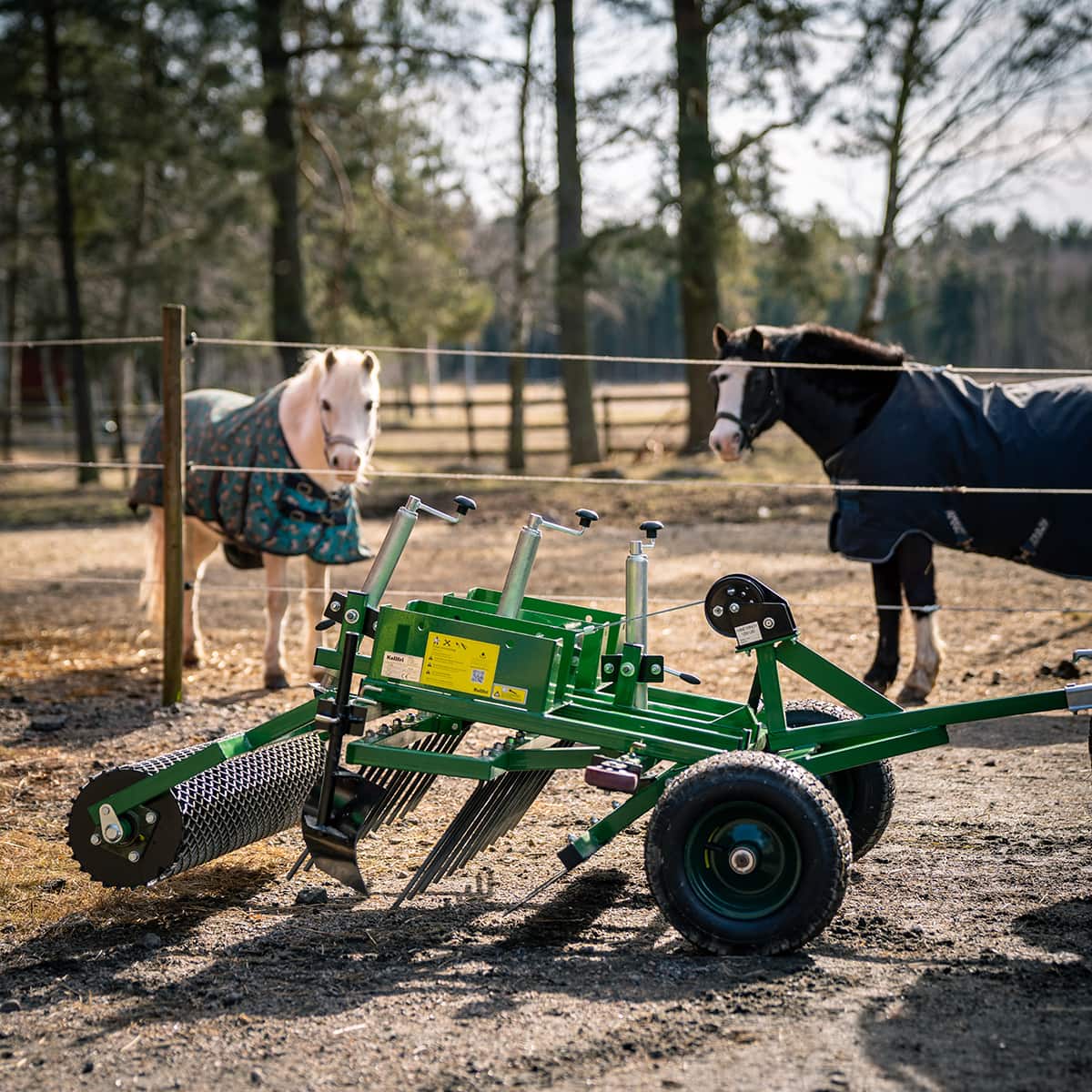

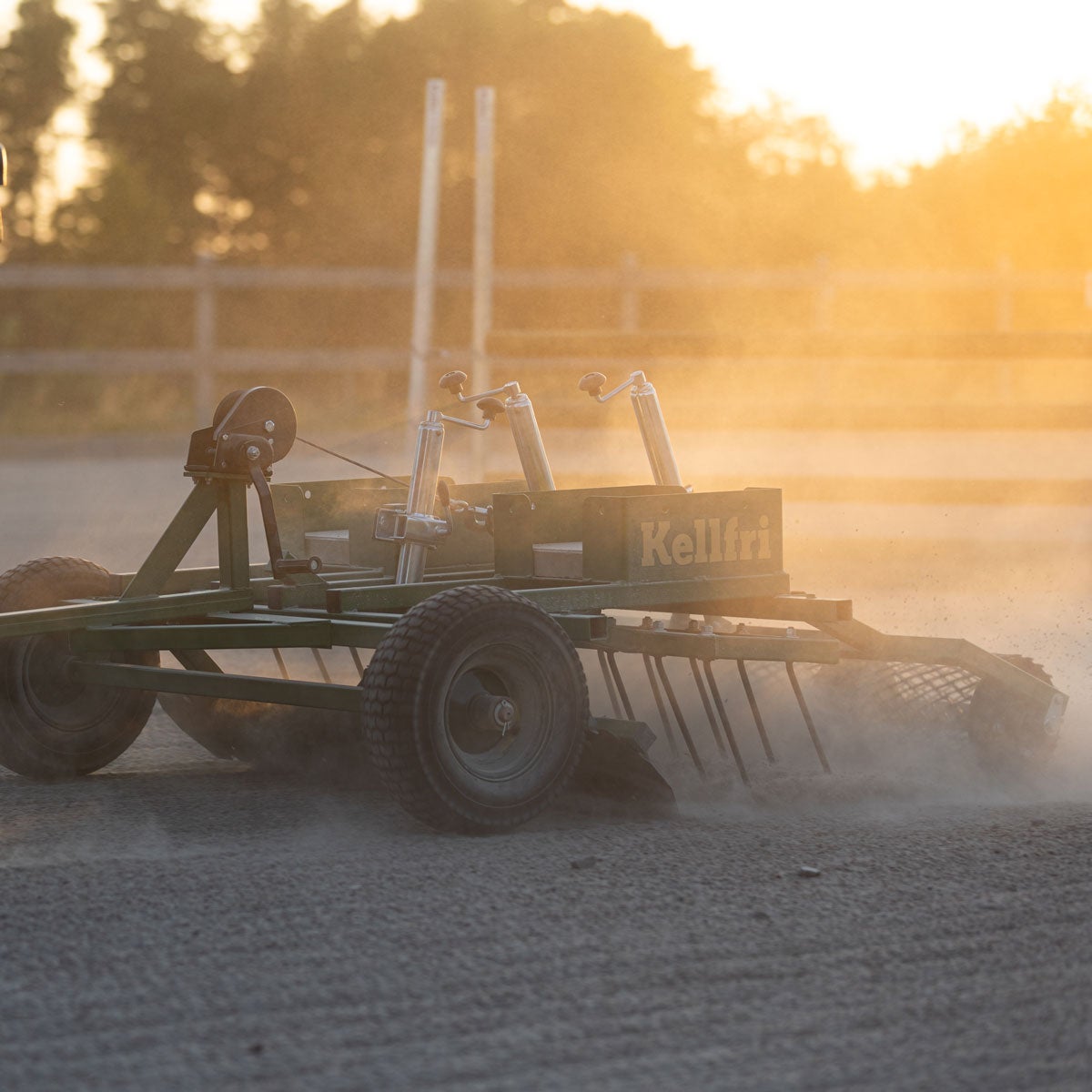

With the adjustable parts, you can operate the arena harrow on sand, quartz, chippings, fibre sand and felt mixes. You can use raking tines, a perimeter scraper or tubular roller, or if you prefer, crank up the rear section for larger material flows. The harrow can be used both indoors and outdoors on wet and dry surfaces. Sturdy rubber tyres 16 x 6.50-8 can handle most surfaces.

Flexible tools are included with the harrow

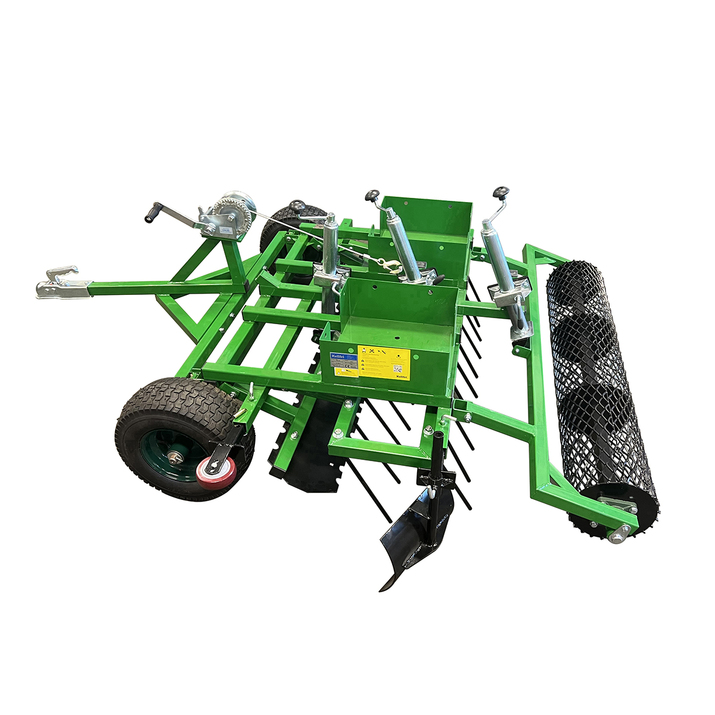

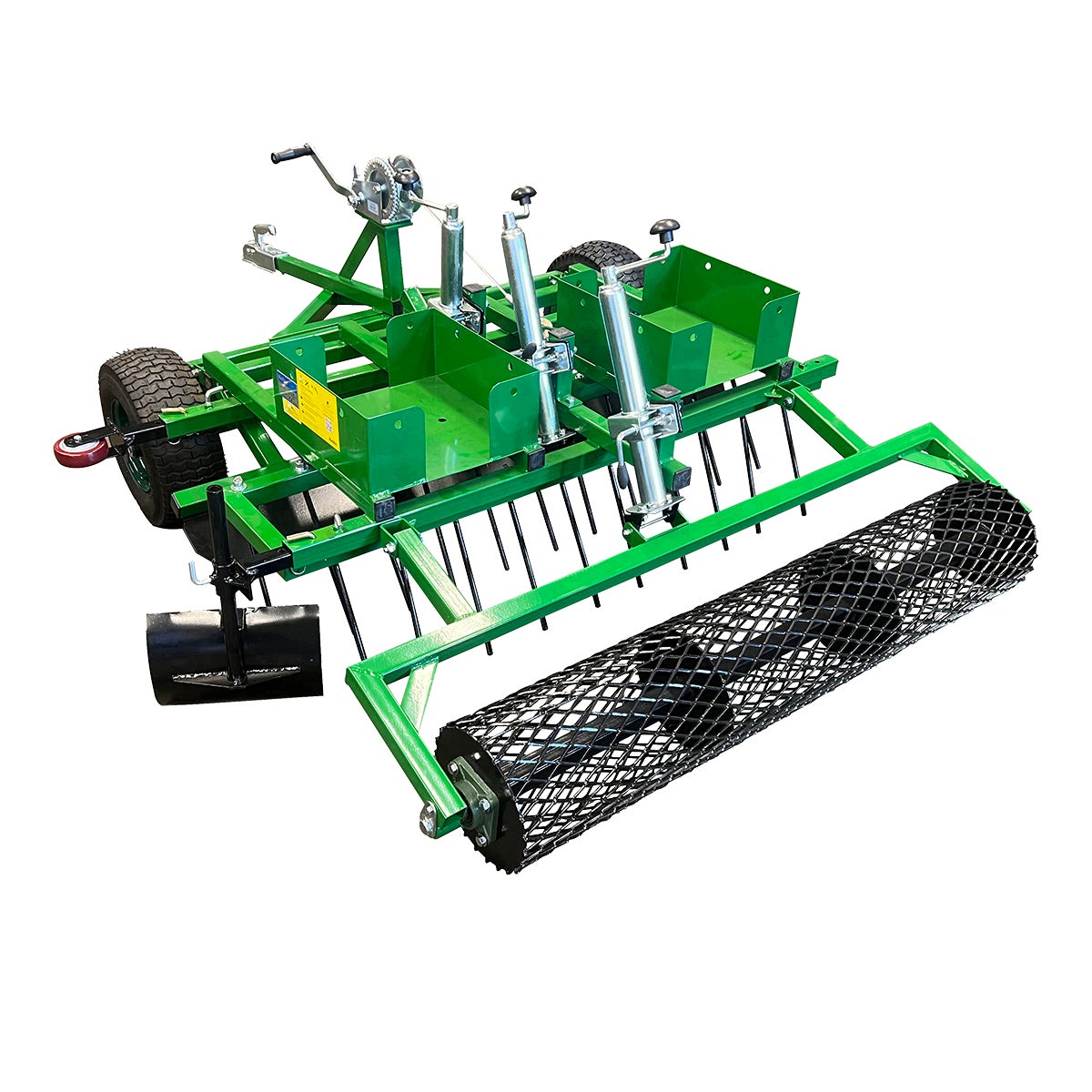

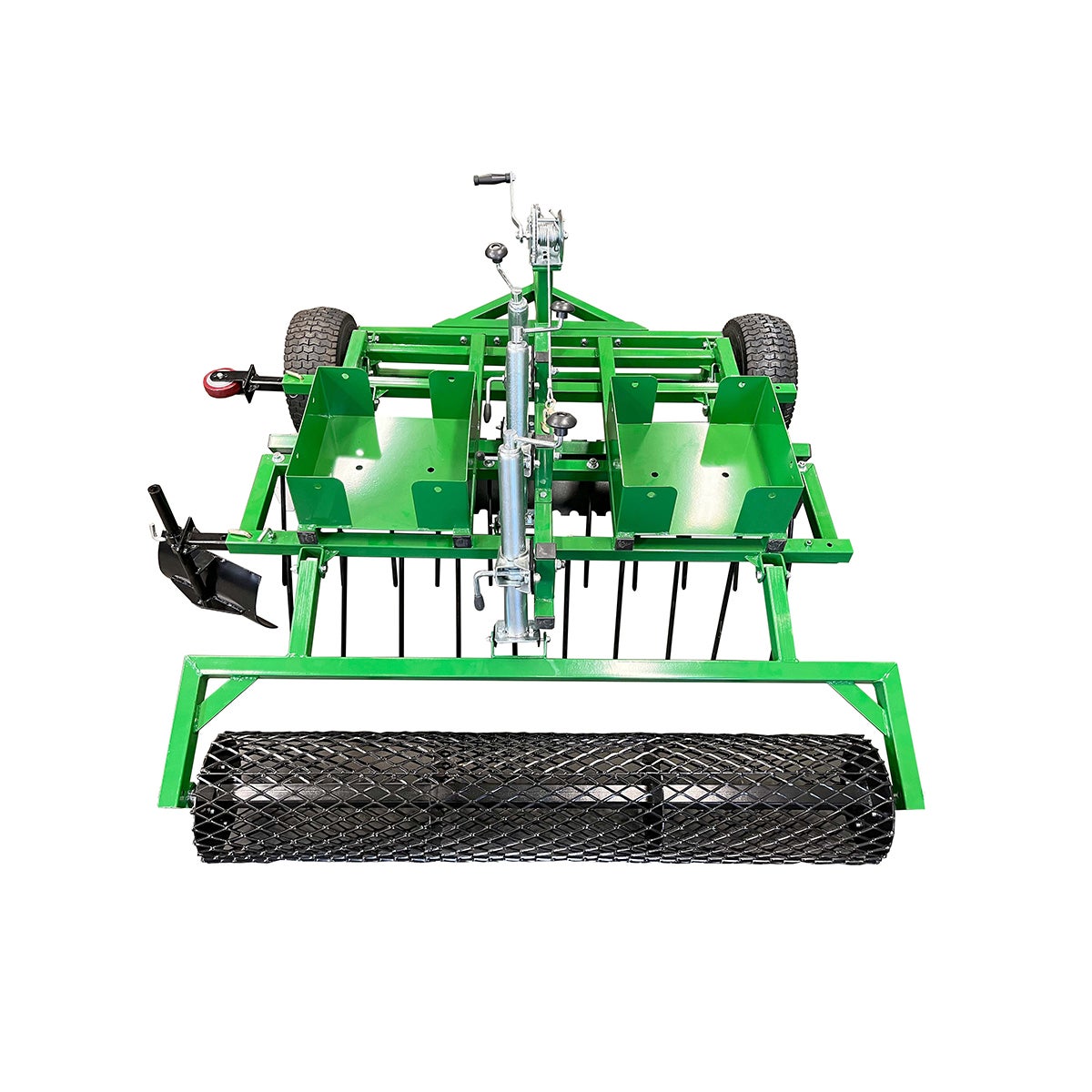

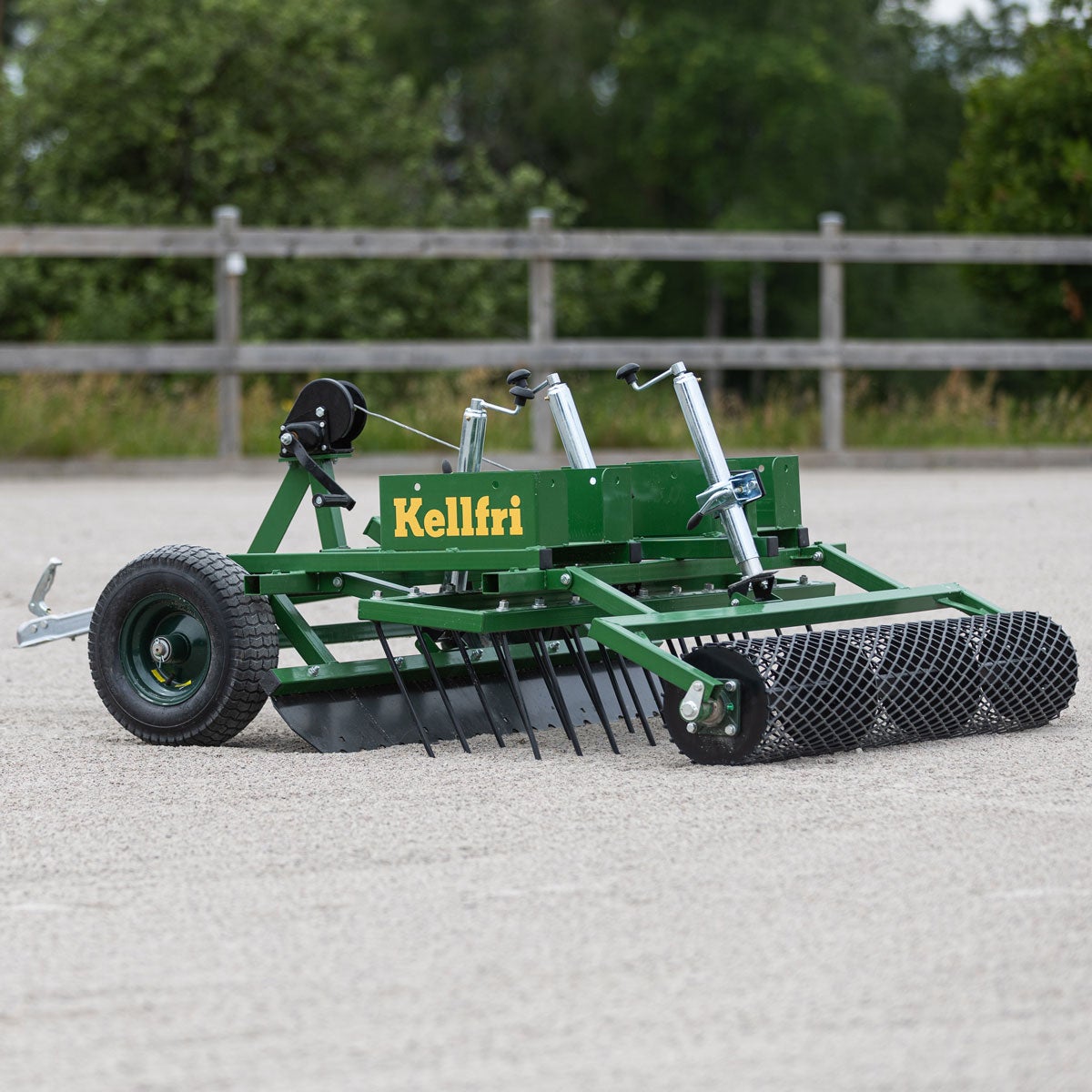

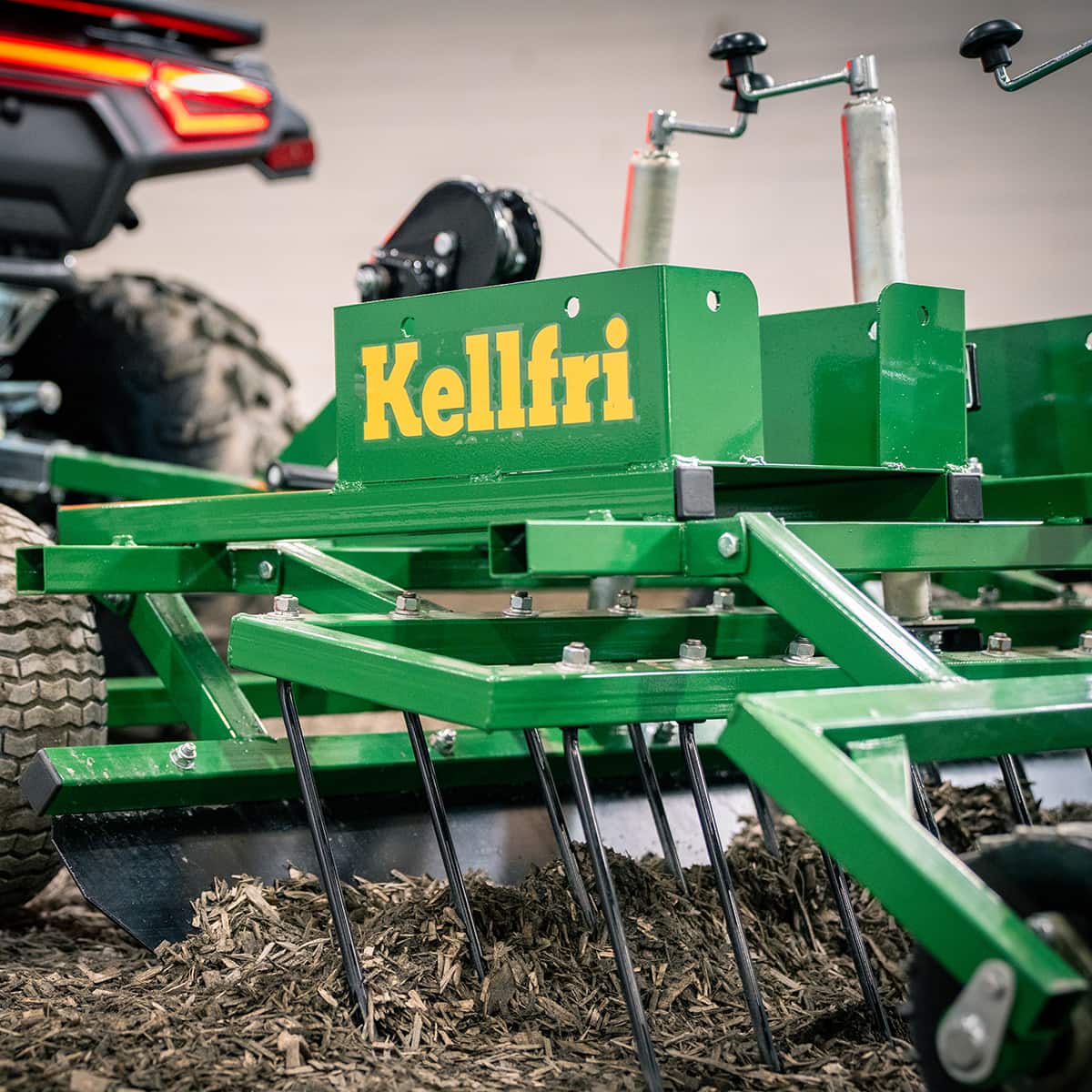

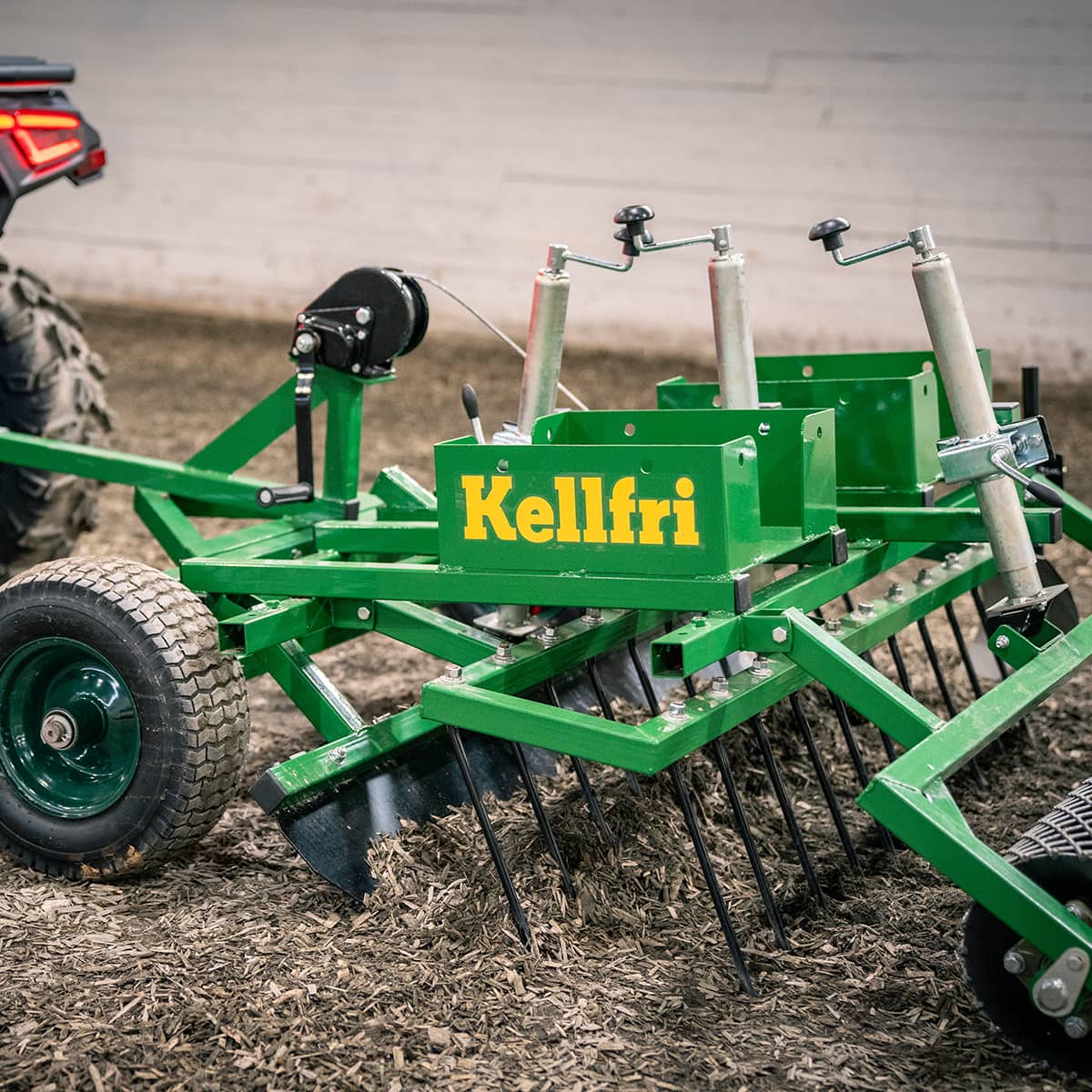

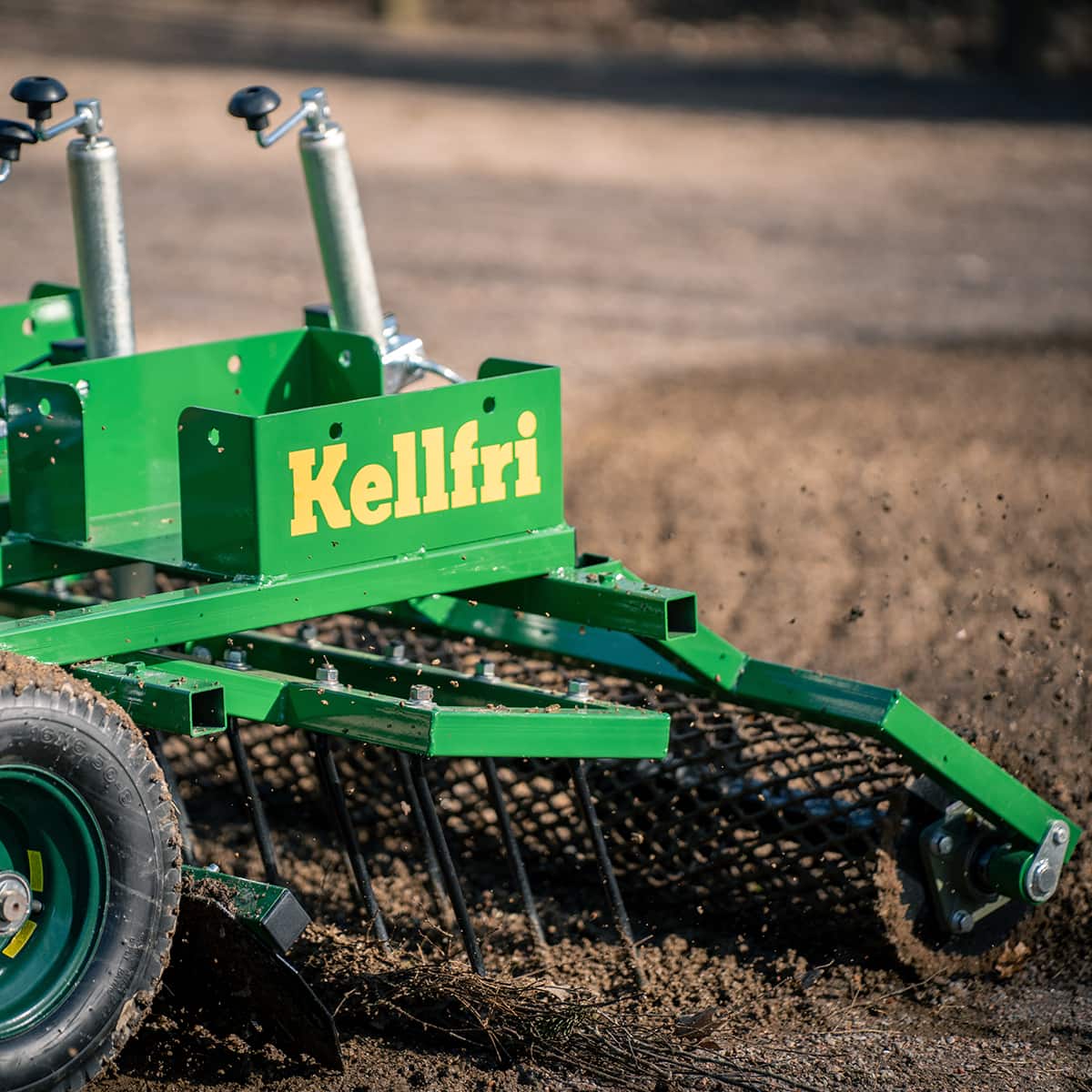

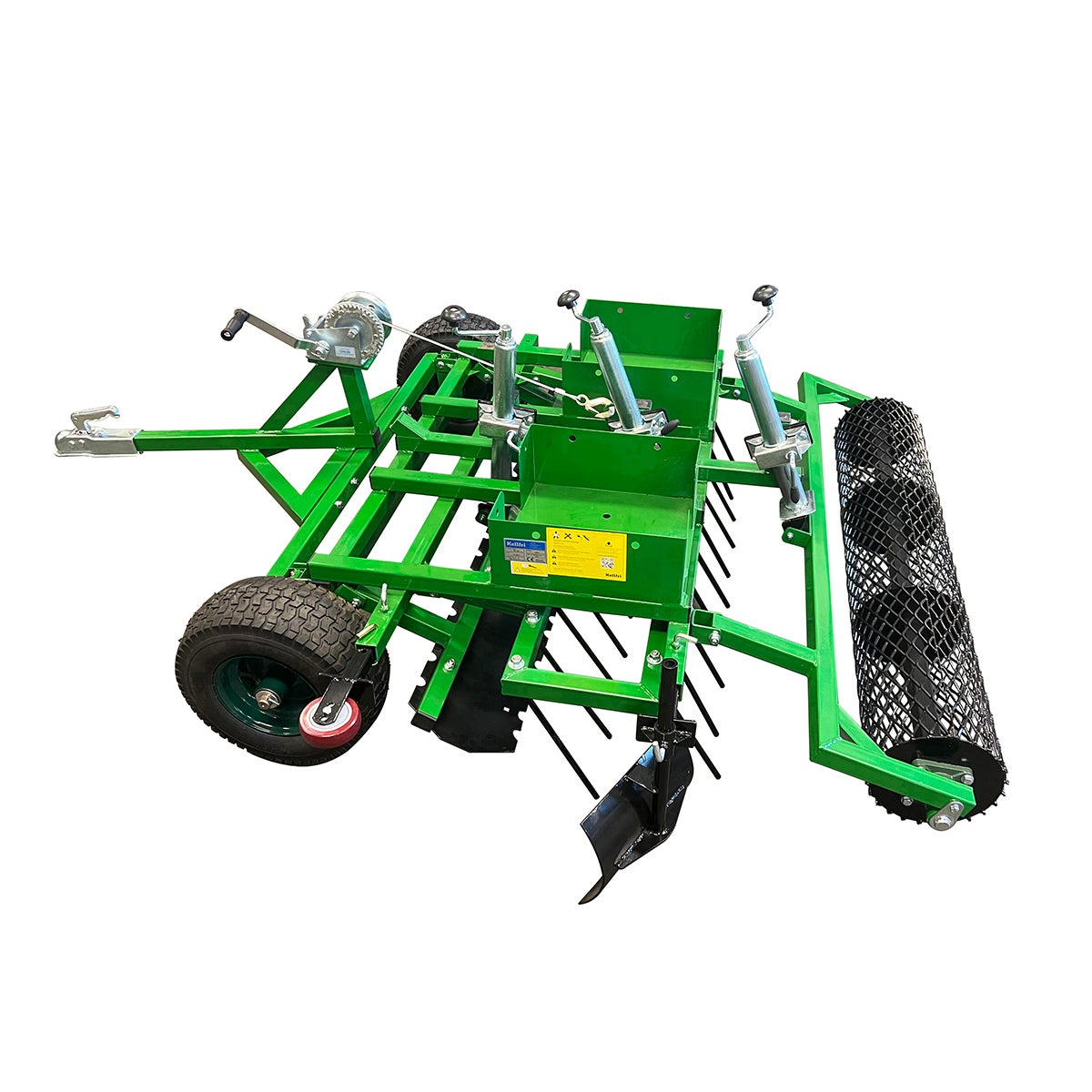

The arena harrow is equipped with two rows of raking tines, a perimeter scraper, tubular roller, crossboard, weight frames and winch.

Harrow depth is simple to adjust with three knobs. The crossboard levels out uneven peaks on the surface and ensures that the harrow operates smoothly and reliably.

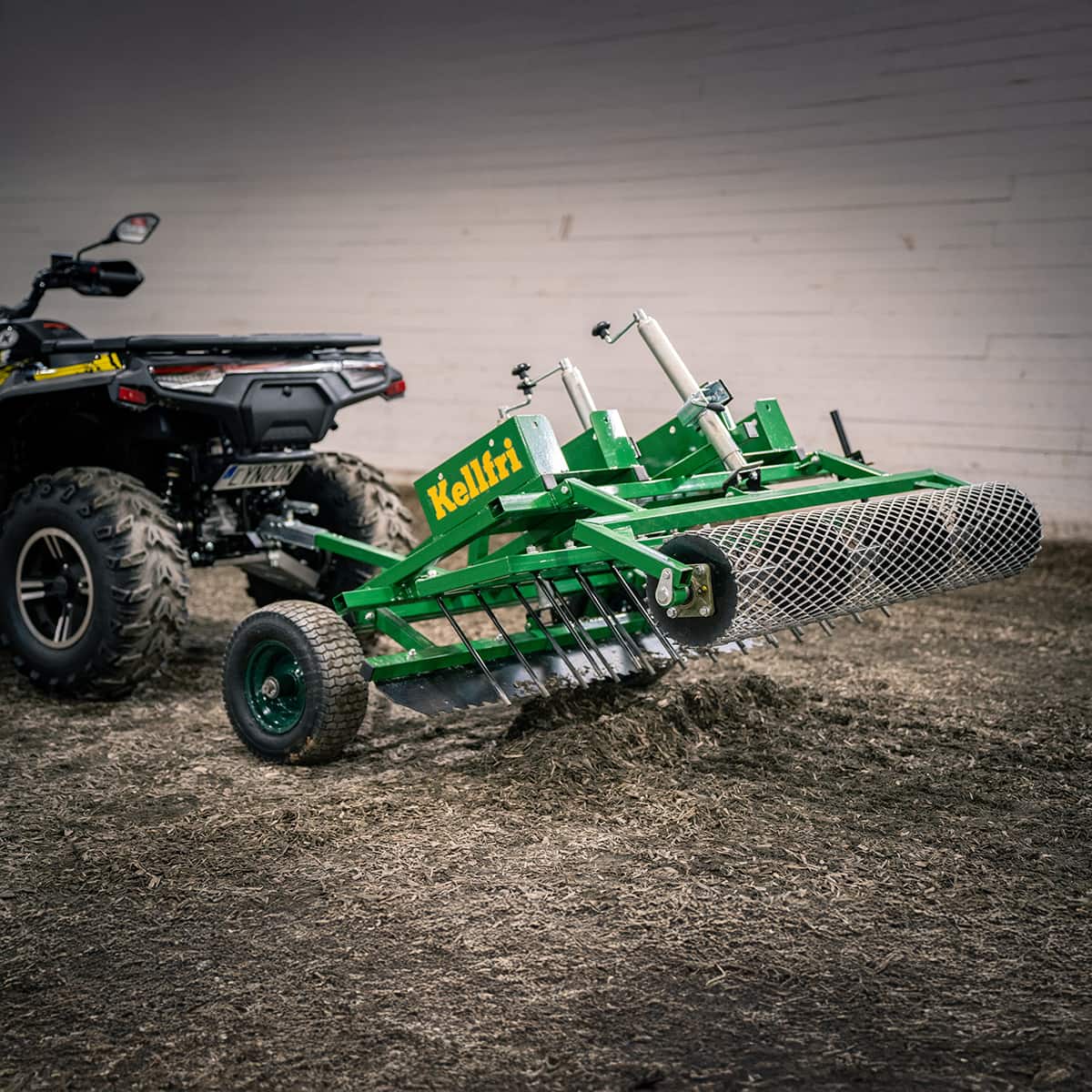

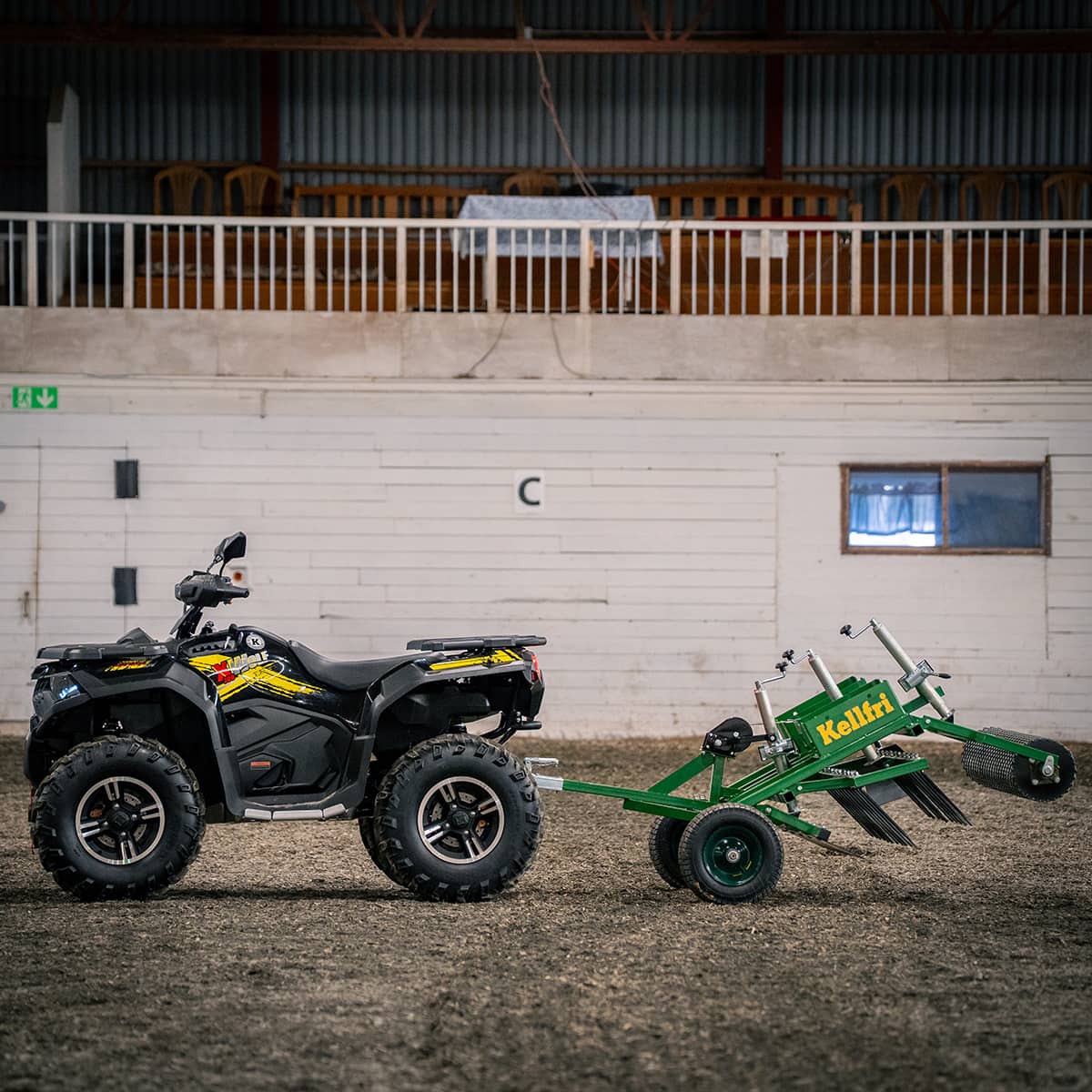

Can be used inside the riding arena

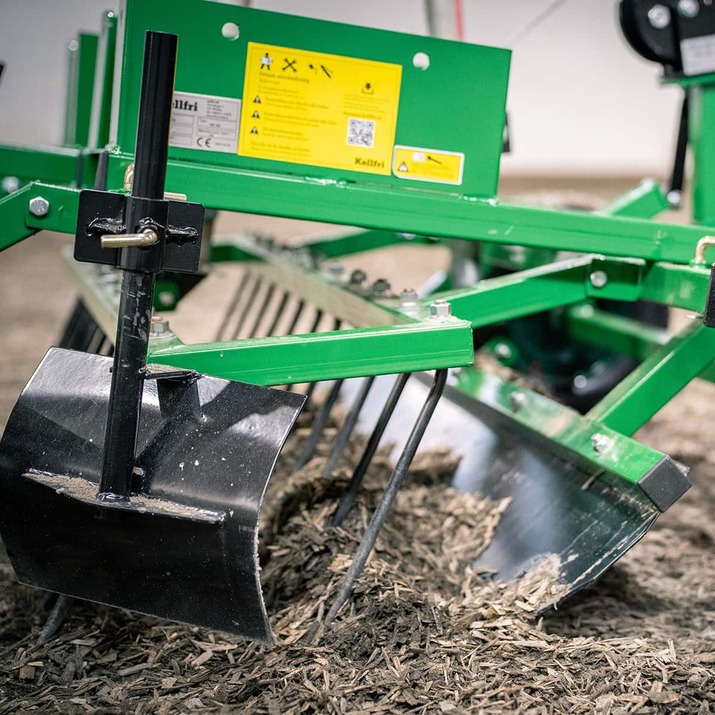

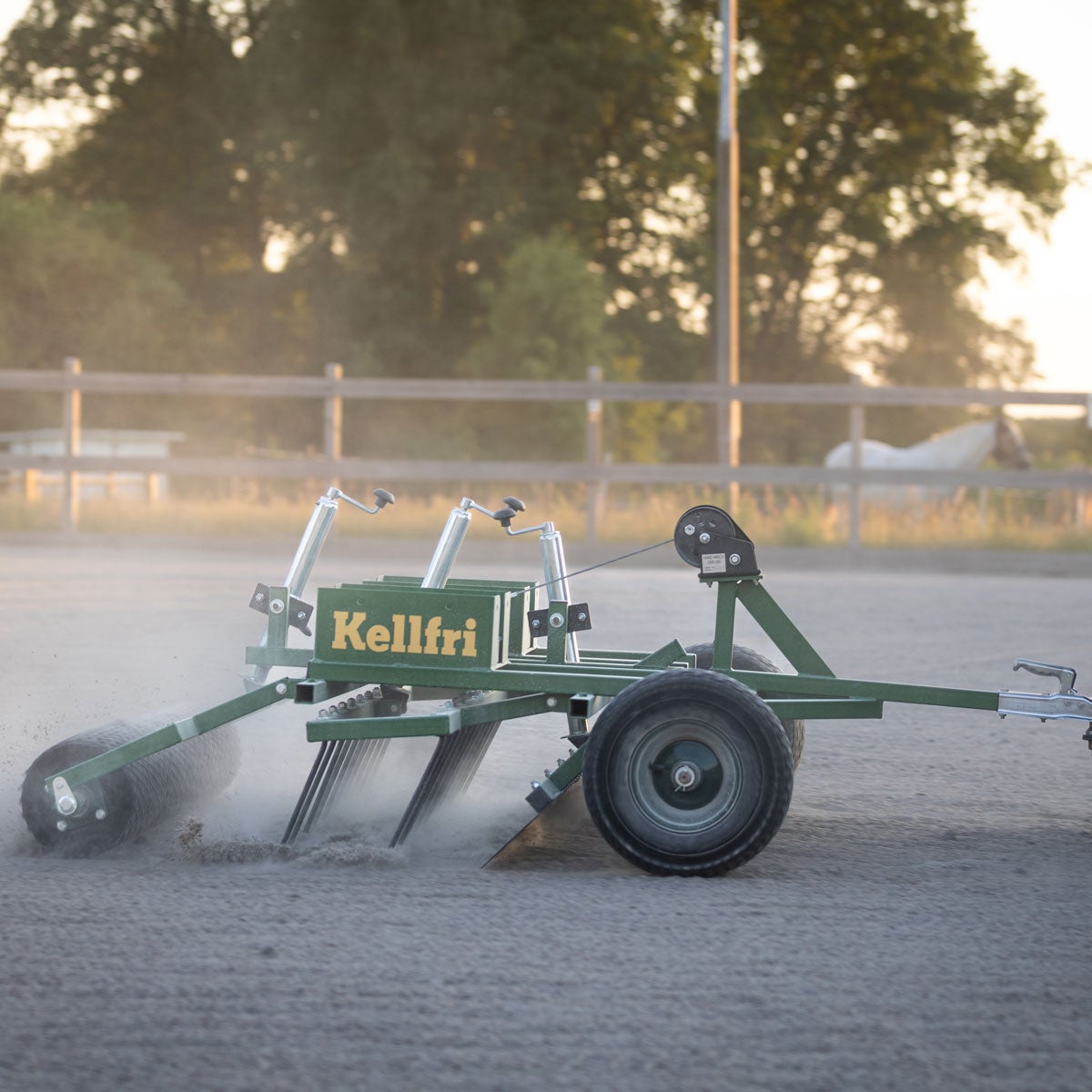

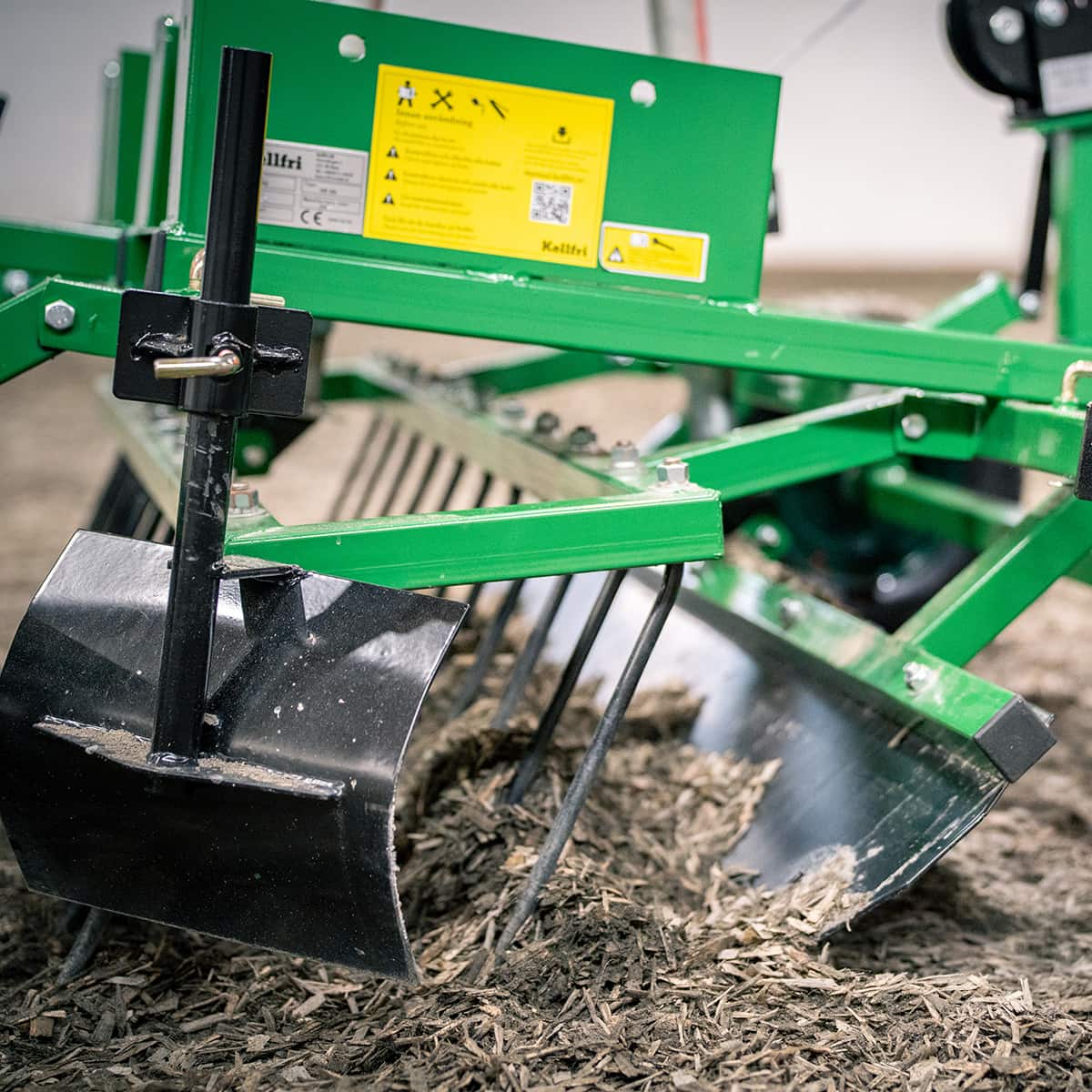

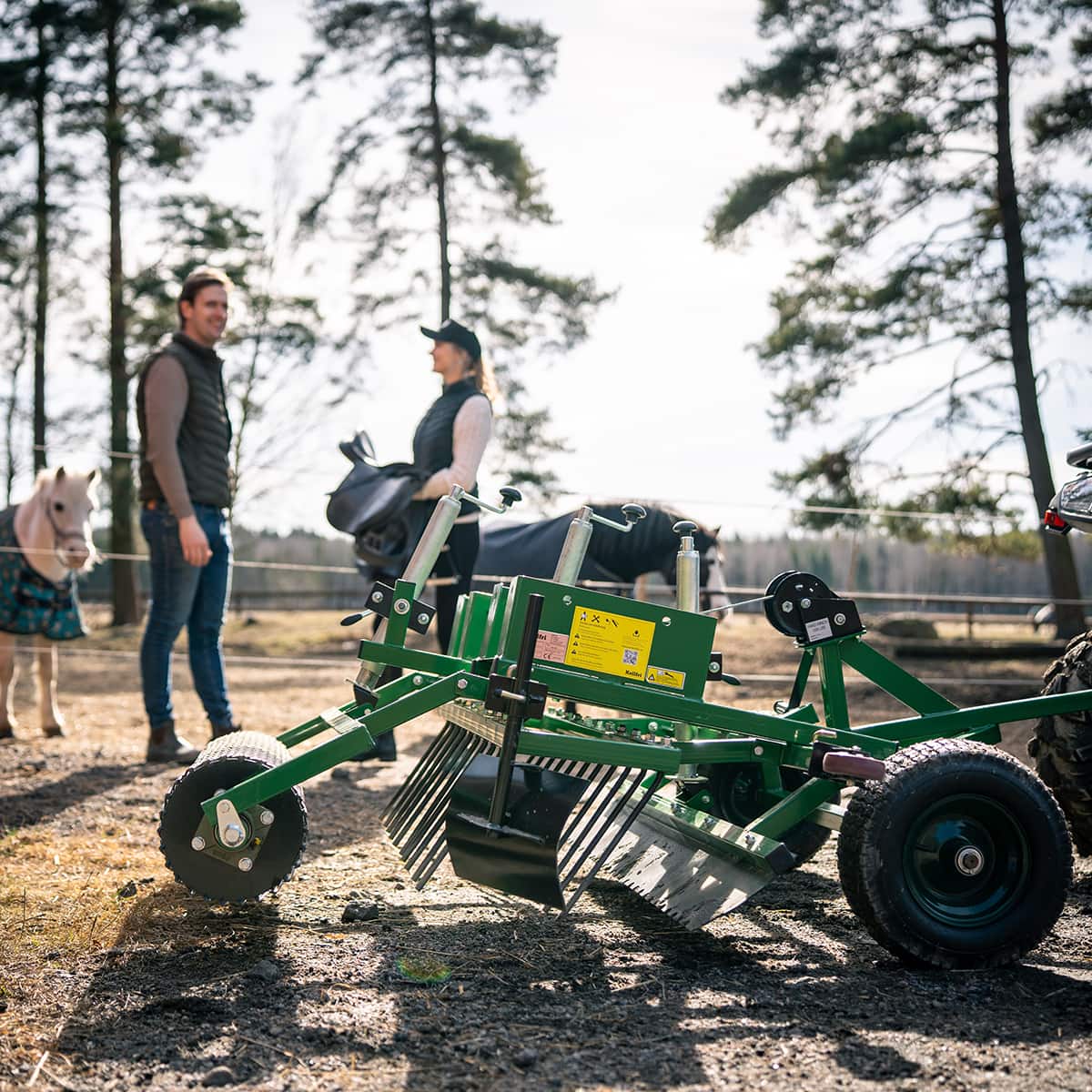

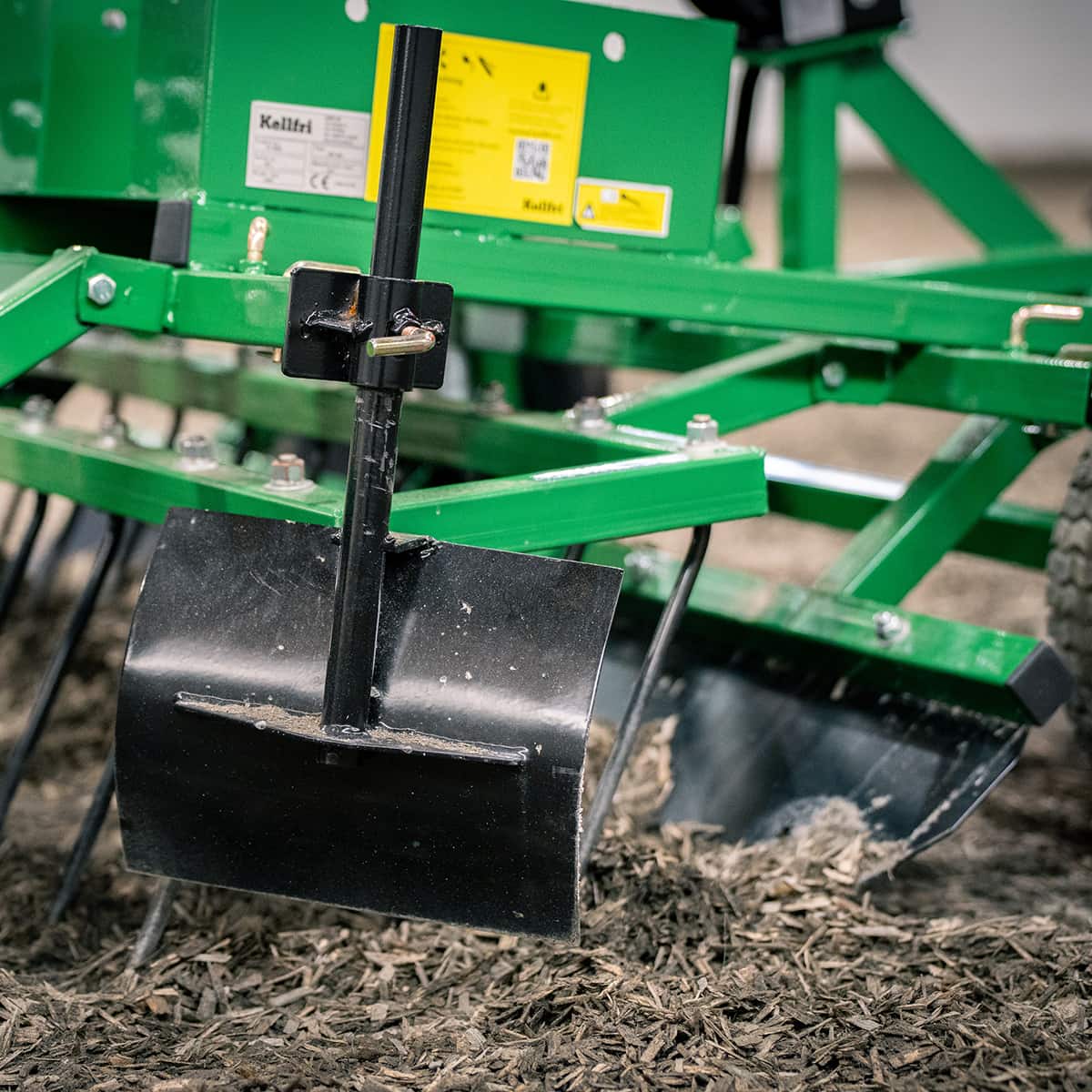

The arena harrow has been designed with a new perimeter scraper and support wheel frames that efficiently work the perimeters in the riding arena. The perimeter scraper has a variable height adjustment and can also be adjusted laterally. Adjust the perimeter distance and scraper angle to work the surface according to your requirements. With a good working width of 1500 mm, harrowing is quick, even in larger riding arenas. Thanks to wide tyres and adjustable ground pressure, the harrow gives uniform results even on softer surfaces.

Weight frames for heavy-duty use

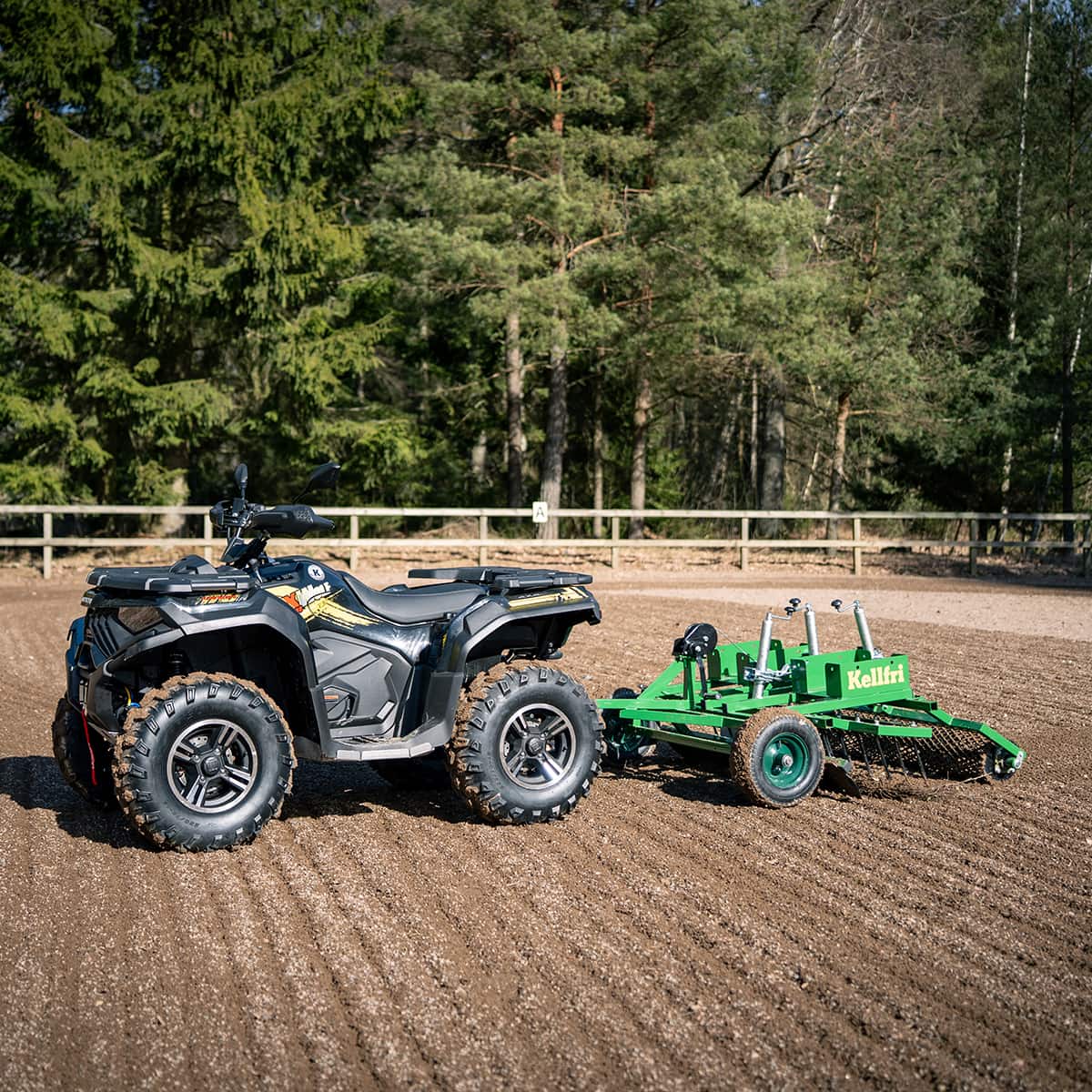

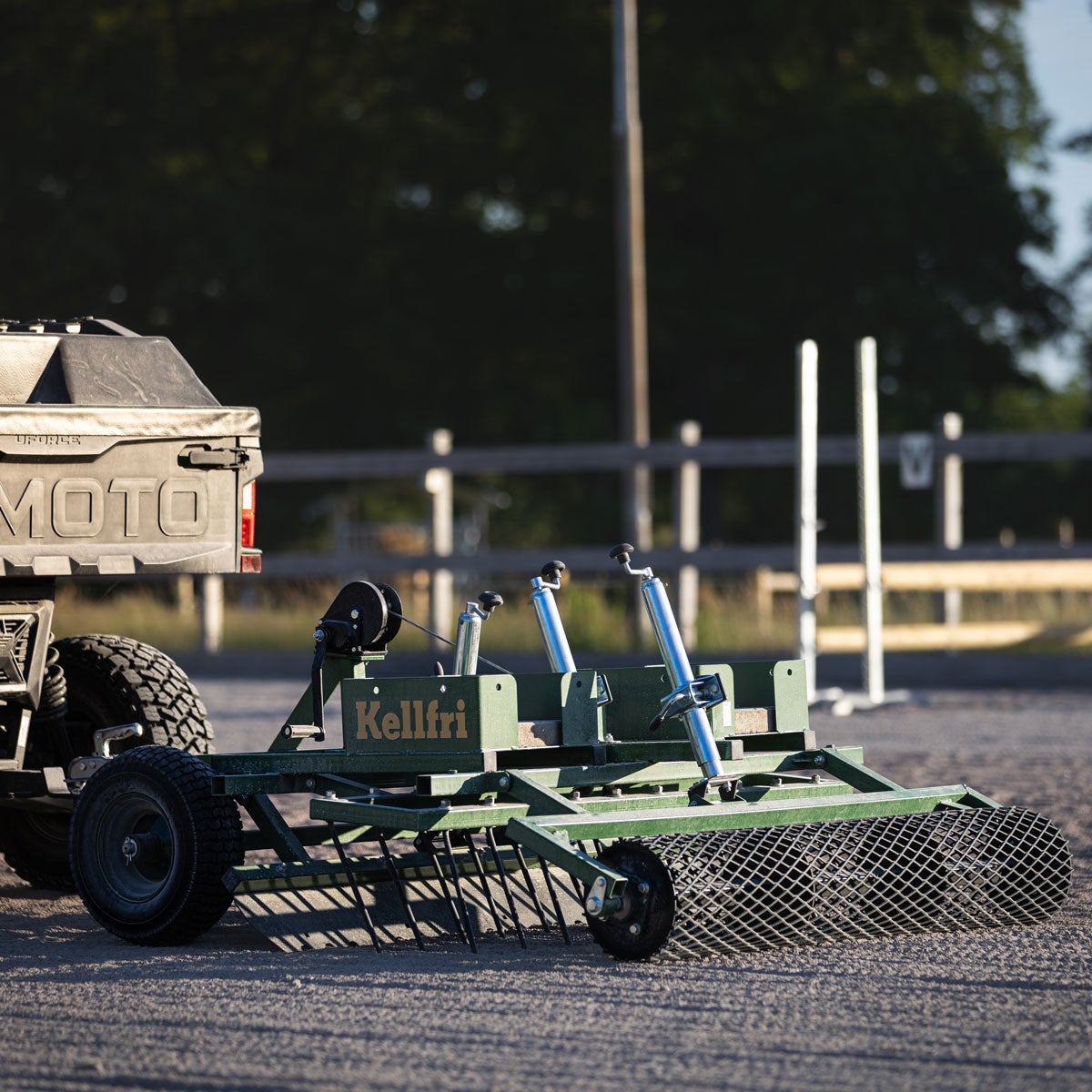

Kellfri’s Arena Harrow has a dead weight of 170 kg, which is sufficient for most types of surface. To increase the surface pressure, use the harrow's two weight frames in which you can insert objects to increase the weight of the harrow. The weight frames have milled holes through which you can thread straps to secure the load. The frames measure 37 x 37 cm and are suitable for e.g. paving stones or water containers. Transporting the arena harrow To transport the harrow, simply set it in transport mode. The harrow has a 50 mm ball coupling and can be towed by quad, car or small tractor.

Product requires assembly.

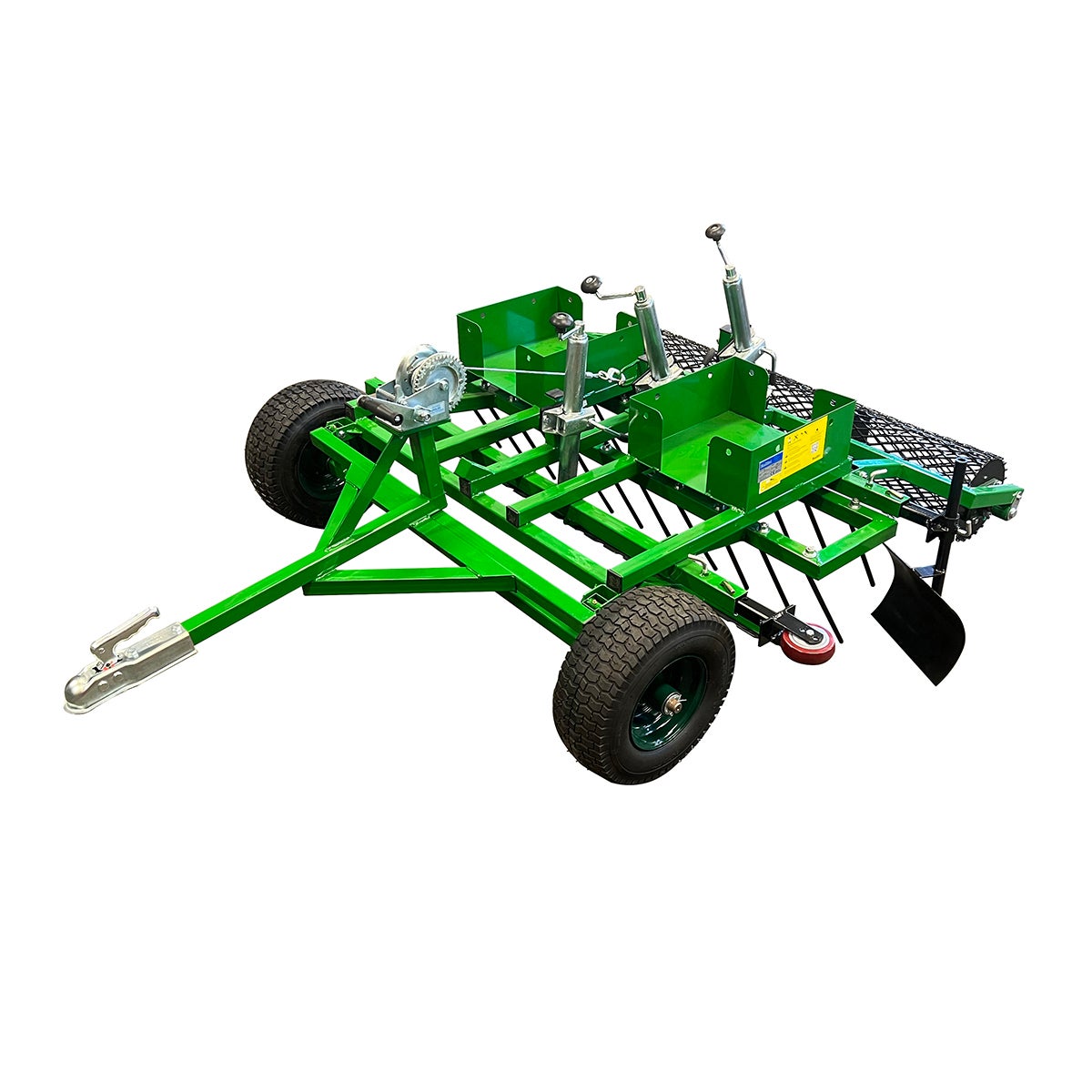

The arena harrow is supplied with:

• Two rows of raking tines

• Perimeter scraper/Side scraper

• Tubular roller

• Crossboard

• Weight frames

• Winch
